| MOQ: | 500PCS |
| Cena £: | 0.19USD-0.72USD |
| Standardowe opakowanie: | 10pcs / blister box,1200pcs / carton box |
| Delivery period: | 3-5 working days after get payment |
| metoda płatności: | T/T or western Union |
| Wydajność dostaw: | 10,000pcs per day |
Sell point:
1. pre-polished and curing ceramic ferrule
2. pre-embedded fiber optic fiber G657A1
3. Length: 53 mm (boot to the top of the dust cap )
4. Cable stripper length: 18mm / 10mm
5. SC/APC,SC/UPC,LC/UPC,LC/APC,FC/UPC can be choose
Description

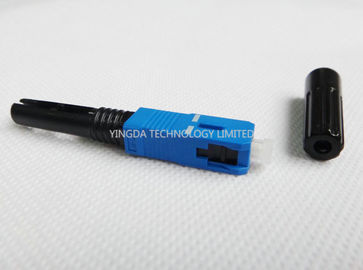

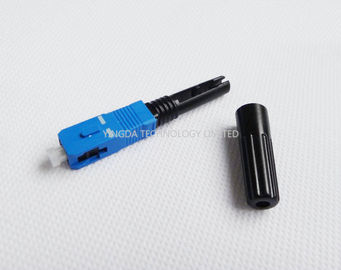

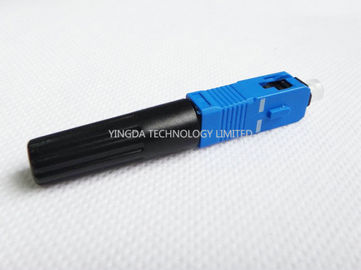

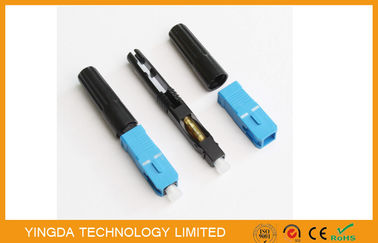

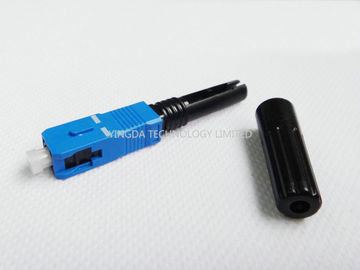

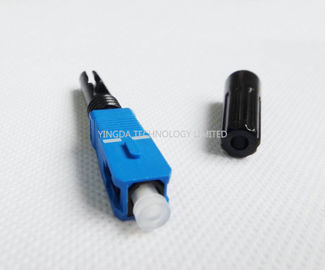

SC/UPC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector,
most people call it fast connector for short. It is a kind of connector, it is used in field wiring
operation and FTTH projectwhere need fast and stable connection. Because it has embedded
fiber and pre-polished and heat oven ferrule, so no need additional glue curing or grinding, thus
offer quicker help to installation, maintenance,repair and fiber to the home for engineers.
The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face
good quality, and effectively protect the user equipment interface from damage, reduce
the connection attenuation loss.
Features
1. Can be used as a connector and attenuator
2. Can made any length of fiber optic patch cord on-site
3. On-site installation, simple and quick operation, only 2 minutes
4. With pre-embedded optical fiber and the end face is pre-polished and heat oven, without any adhesive and polishing process
5. Do not need hot melt, save power supply
6. High performance, good reliability
7. Mechanical and environmental performance conforms to GR-326-CORE standard.
Application
Specification
|
Applicable for |
3.1×2.0mm Drop cable, 3.0/2.0/0.9 cable |
|
Optical fiber diameter |
125um (G652D,G657A1,G657A2) |
|
Tight butter diameter |
250um |
|
Fiber mode |
Single mode |
|
Operation time |
About 60s (no fiber cut) |
|
Insertion loss |
≤0.3dB(1310nm &1550nm) |
|
Return loss |
≤-40dB |
|
Fastening strength of naked fiber |
＞5N |
|
Fastening strength of naked fiber holder |
＞10N |
|
Tensile strength |
＞50N |
|
Using temperature |
-45～+80℃ |
|
On-line tensile strength(20N) |
△IL≤0.2dB △RL≤5dB |
|
Mechanical durability(500times) |
△IL≤0.2dB △RL≤5dB |
|
Drop-off test (drop-off height 4m, once per direction,totally 3times) |
△IL≤0.2dB △RL≤5dB |
Order information
Fast Connector connect with drop cable then can do patch cord as below:
Package methods:
