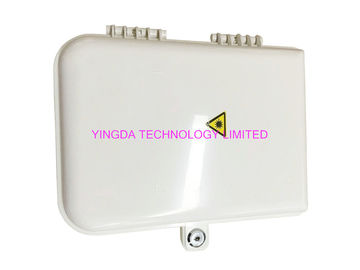

Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters
Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.
WhatsApp:0086 18588475571
czat: 0086 18588475571
Skype'a: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xadapter | SC/APC | Capacity | 16 fibers |
---|---|---|---|
output | 16 FTTH drop cable figure-8 or self-supporting type. | Cable inport | 2 PCS |
PLC splitter | 1:16 mini splitter | Dimension | 260*320*90mm |
Material | PC | Color | white |
Application | FTTH | adapter quantity | 16 pieces |
customer logo | ok | customer label | ok |
High Light | fiber optic closure,optical distribution box |
FTTH Outdoor 16Core Fiber Optic Termination Box With SC/APC Adapters, 1x16 PLC Splitter Plastic
This fiber optic distribution box is adopted the latest design, no special tool for the locking, easy installation and opening. Flip-open cover design to avoid removing other splice tray, it also can be equipped with PLC splitter.
It is with the functions of mechanical splice,fusion splice,light splitting,wiring distribution.
Applications
1.Applicable in FTTH project
2. Suitable for corridor,basement,room and building's outer walls application
3. With the function of mechanical splice,fusion splice,light splitting,wiring distributions
Features:
1. Industry Standard User Interface, be made of high impact plastic.
2. Can accommodate 1x8 & 1X16 PLC splitter.
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Up to 16 FTTH drops.
5. Wall and pole mountable.
6. 2 inlet ports, 16 outlet ports.

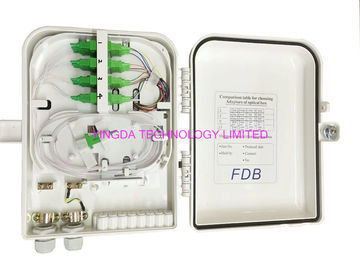

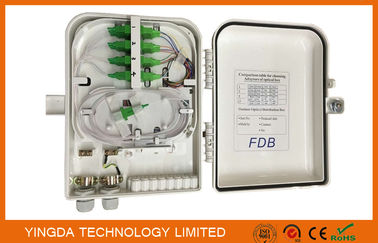

More clear pictures

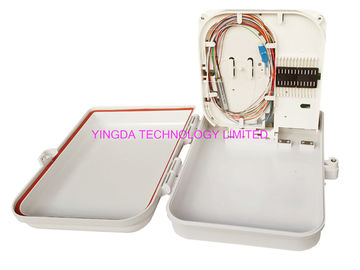

- there is rubber seal all around the box in red color, which prevents the box from water, humidity and harsh environment outside.

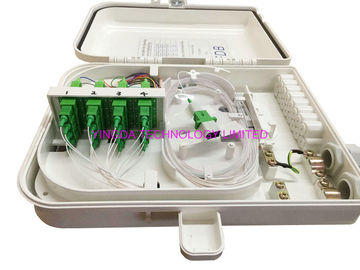

- it has double layer tray, upper layer for adapter panel and fiber routing or storage, down layer is for distribution, splitting or heatsrhink protection storage.
- the adapter panel is plastic, and fix by screws, it maximum can install 16pcs SC adapters simplex, or LC duplex.
- there is a speical fixation place for PLC splitter steel tube, maximum hold 1x16 plc splitters and there is 24pcs heat shrink tube protection tray.
- the whole tray can be 90° angel rorate to ease on-site construction, during transporation,tighten the screws with box. Then it will be in place, not moving and break fiber, humanity design.
- for better identification, the splitter input connectors can be blue color, then it will not confused with outputs connectors like below right pictures.
empty box can install plc splitter mini module 0.9mm, steel tube, it has enough space for fiber storage, the cable length better to be 1meter or maximum 1.5meters.
Specification
Model | FDB-0216 |
Capacity | 16 port |
Material | PC |
Dimension | 260mm(W)x320mm(D)x115mm(D) |
Color | White |
Cable ports | 2inlet, 16outlets |
Adapter | SC, LC |
Splitter | Mini splitter 1x8,1x16 |
Working temperature | -40~+85°C |
Packing information
Model | N.W (kg/pcs) | Dimension of outer carton (mm) | G.W of outer Carton (kg/carton) | No of Products (pcs/carton) |
FDB-0216 | 1.80 | 550*355*620 | 19.8 | 10 |
FAQ
Q1. Can I have a sample order?
A: Yes, welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 days, mass production time needs 5-7day for order quantity more than 1000pcs
Q3. Do you have any MOQ limit ?
A: low MOQ, and for most of the products, there is no MOQ
Q4. How do you ship the goods and how long does it take to arrive?
A: if small order, by DHL, UPS, FedEx or TNT by air which usually takes 2-3 working days to arrive. If by airline shipping, it takes about 5-7days, if by sea shipping, it should take around 15-30days based on different country and continent, all of them are accepted.
Q5. How to proceed an order ?
A: Firstly, let us know your requirements or application in details.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
