2In 16Out Fiber Access Terminal Box, Uncut Cable Termination Box for PLC Splitter Black Plastic 16Ports
Model: FDB0216A
FDB0216A Optical Termination Box is a high density wall mounted solution for FTTH next generation networks, it provide and manage maximum 16cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application.
Feature
FDB0216A Termination Box DIECUT
FDB0216A Termination Box 3D drawing -- UNCUT CABLE PORT
(the feeder cable go through the box no need cutting, easy for on-site installation)
Application
Specifications:
| Model | FDB0216A |
| Material | ABS |
| Size(W*H*D) | 260*320*115mm |
| Max capacity | 16 fibers |
| Adapter qty | 16 x SC |
| PLC splitter | 1x2,1x4,1x8,1x16 micro splitter |
| Color | White, black, gray |
Packing information:
| Model | QTY/CTN | CTN size | N.W/CTN | G.W/ CTN |
| FDB0216A | 10pcs | 56*36*63cm | 1.48 | 16.5kgs |
How to install
Steps:
1.insert small diameter of cable and fix it, fig. 1
2. connect the cable with splitter input cable by fusion splicing or mechanical splicing. fig. 2
3. fix 1x8 and 1x16 splitter, fig. 3
4. connect splitter ribbon fibers with output pigtails that coated loose tube, fig. 4
5. fix the arranged ouput pigtails with losse tube to tray, fig. 5
6. lead output pigtails to the other side of the tray, and insert adapter , fig. 6.
7. pre-insert optical drop cables to outlet holes in order, then seal it b soft block. fig. 7
8. pre-installed field assembly connector of drop cable, the insert connectors to optical adapter in order and tie it by cable ties. fig. 8
9. close the cover, finish installation. fig. 9

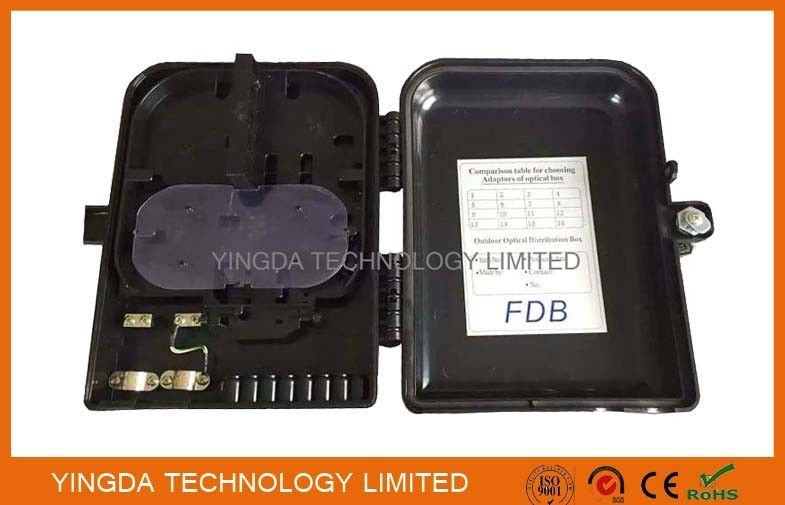

EMPTY BOX SHOW:
Our advantages
1.The most competitive price
2.We are eager to establish long-term cooperation relationship with every customer,so we're responsible for our quality.we provide 3 years warrranty
3.We provide one-stop FTTH Solution Products.besides, we can help you design unique new products and put into production.We care about innovation and would like to change for you and grow up with you.
4.With our own R&D, more completed production lines, advanced production & testing equipments,experienced staffs, we’re confident to provide you satisfied quality and service with competitive price and punctual delivery.
5.For your any queries or inquiries,we will try to reply you within 3 hours
