| Nazwa marki: | yingda |
| Numer modelu: | YDPLC-LGX-208LU |
| MOQ: | 1 szt |
| Cena £: | 1.1USD-4.58USD |
| Czas dostawy: | 5 dni |
| Warunki płatności: | T/T, Western Union, MoneyGram, L/C |

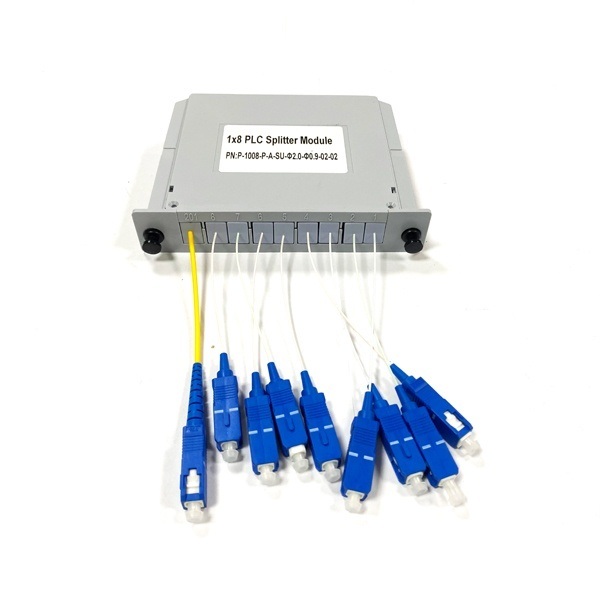

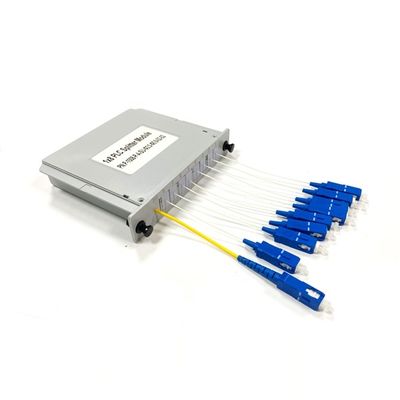

Plug-in Type PLC Splitter 1X8 with SC UPC Connector, 2.0mm cable for inlet port 0.9mm cable for outlet port
Plug-in type PLC splictter also called LGX PLC splitter used to distribute or combine optical signals in FTTH deployment. It’s usually installed in the wall mount Fiber optic distribution box to save time & space and provides reliable protection for the fiber optic cores.
YINGDA offers a variety of 1xN and 2xN PLC splitters in plug-in type. Their compact structure and small volume make them convenient for use in various places, such as 19-inch racks, cross-connect cabinets, and other devices. Our fiber splitters offer outstanding optical performance and reliability, meeting GR-1221-CORE and GR-1209-CORE specifications.
LGX Box Dimension:
| Splitting ratio | Dimension (H×W×D)mm |
| 1x2 / 2x2 (Inserts) | 130×100×25 |
| 1x4 / 2x4 (inserts) | |
| 1x8 / 2x8(Inserts) | |
| 1x16 / 2x16 (Inserts) | 130×100×50 |
| 1x32 / 2x32 (Inserts) | 267×100×50 |
Product details:

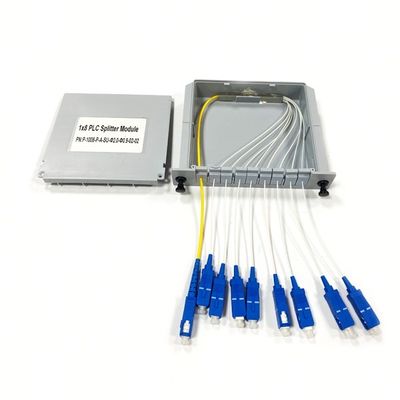

Box overview:
box size:130×100×50mm, small size, large capacity, can use maximum 2x32LC SC plc splitter with connectors lid and bottom is connected with 2screws on the top, we can make OEM logo on the label to make better marketing.
Integrated design
The LGX box type of PLC splitter integrates the light splitter, which greatly facilitates
the construction of the project and reduces the damage caused by the improper construction or storage of the conventional box splitter.
Details:

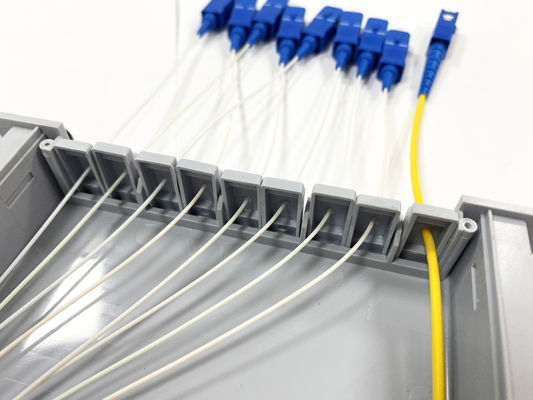

front adapter panel: there is 123456... 16 and IN1 IN2 mark for better construction and fiber count. steel tube fix place is specially deisgn, with glue to make it more stable during transporation.enough fiber storage and wiring space, reasonable fiber bend radius.
Inlet and outlet port with connector and cable, direct connecting to your device, no need aother adapter, save your cost and reduce losses during connection.
Package:
suggest to use 1piece / cardboard box, but if u need cost effective, plastic bag will be ok, then about 10 or 20pcs will be in a small cardboard, it will be ok to protect the item in good condition.
welcome OEM or ODM.
Application:
CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband
Order information:
PLC-LGX-XXX/XXX
- 1 / 2
| PLC | 1 Split ratio | 2 connector in/out port |
| LGX Modular |
102=1*2 104=1*4 ... |
SA=SC/APC SU=SC/UPC ST=ST ... |
YINGDA 'S PLC Splitter production line
1.Advanced production and testing equipment
|
|
| Nazwa marki: | yingda |
| Numer modelu: | YDPLC-LGX-208LU |
| MOQ: | 1 szt |
| Cena £: | 1.1USD-4.58USD |
| Szczegóły opakowania: | 1 szt./PLASTIKOWA TORBA, 40 szt. w kartonie |
| Warunki płatności: | T/T, Western Union, MoneyGram, L/C |
Plug-in Type PLC Splitter 1X8 with SC UPC Connector, 2.0mm cable for inlet port 0.9mm cable for outlet port
Plug-in type PLC splictter also called LGX PLC splitter used to distribute or combine optical signals in FTTH deployment. It’s usually installed in the wall mount Fiber optic distribution box to save time & space and provides reliable protection for the fiber optic cores.
YINGDA offers a variety of 1xN and 2xN PLC splitters in plug-in type. Their compact structure and small volume make them convenient for use in various places, such as 19-inch racks, cross-connect cabinets, and other devices. Our fiber splitters offer outstanding optical performance and reliability, meeting GR-1221-CORE and GR-1209-CORE specifications.
LGX Box Dimension:
| Splitting ratio | Dimension (H×W×D)mm |
| 1x2 / 2x2 (Inserts) | 130×100×25 |
| 1x4 / 2x4 (inserts) | |
| 1x8 / 2x8(Inserts) | |
| 1x16 / 2x16 (Inserts) | 130×100×50 |
| 1x32 / 2x32 (Inserts) | 267×100×50 |
Product details:
Box overview:
box size:130×100×50mm, small size, large capacity, can use maximum 2x32LC SC plc splitter with connectors lid and bottom is connected with 2screws on the top, we can make OEM logo on the label to make better marketing.
Integrated design
The LGX box type of PLC splitter integrates the light splitter, which greatly facilitates
the construction of the project and reduces the damage caused by the improper construction or storage of the conventional box splitter.
Details:
front adapter panel: there is 123456... 16 and IN1 IN2 mark for better construction and fiber count. steel tube fix place is specially deisgn, with glue to make it more stable during transporation.enough fiber storage and wiring space, reasonable fiber bend radius.
Inlet and outlet port with connector and cable, direct connecting to your device, no need aother adapter, save your cost and reduce losses during connection.
Package:
suggest to use 1piece / cardboard box, but if u need cost effective, plastic bag will be ok, then about 10 or 20pcs will be in a small cardboard, it will be ok to protect the item in good condition.
welcome OEM or ODM.
Application:
CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband
Order information:
PLC-LGX-XXX/XXX
- 1 / 2
| PLC | 1 Split ratio | 2 connector in/out port |
| LGX Modular |
102=1*2 104=1*4 ... |
SA=SC/APC SU=SC/UPC ST=ST ... |
YINGDA 'S PLC Splitter production line
1.Advanced production and testing equipment
