Rozdzielacz światłowodowy
Created with Pixso. 16Cores MPO Elite PLC Splitter 8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room

16Cores MPO Elite PLC Splitter 8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room

Nazwa marki: YINGDA
Numer modelu: 1: 9 PLC Splitter
MOQ: 100 szt
Cena £: 1.1USD-4.58USD
Czas dostawy: 5-8 dni po dokonaniu płatności
Warunki płatności: Western Union, T/T, Moneygram
Szczegółowe informacje
Miejsce pochodzenia:
Chiny
Orzecznictwo:
ISO, CE
Współczynnik podziału:
MPO 16CORES Optial Splatter
Typ światłowodowy:
G657a1
Utrata wstawiania:
2,2 dB / 16,3 dB
Złącze:
Złącze SC APC
Długość fali:
1260 - 1650 nm
PDL (maks.):
0,3dB
Standard:
Telcordia GR-1221 i GR-1209
Wymiar rurki:
60*7*4mm
Szczegóły pakowania:
1 sztukę na pudełko, 80 sztuk na karton
Możliwość Supply:
10 000 szt. Miesięcznie
Opis produktu

16Cores  MPO Elite PLC Splitter  8cores MPO+ 4pcs 1*2 Sca Coupler Splitter Hybrid Splitter For Data Center Service room



Designed for data center applications requiring quick infrastructure deployment such as main, horizontal, and zone.
MTP/MPO trunk multifiber cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments, reducing network installation or reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized MTP/MPO fanouts.
Our company also provides a variety of MPO customization solutions, including MPO trunk patch cord, branch patch cord, MPO Optical splitter, etc.



Fiber Optic splitter Features

• Low insertion loss and high return loss

• PDL automatic screening system(Ultra low PDL is available)

• High reliability and stability

• Connector can up to grade B

• 100% 3D tested by Daisi and Sumix

• High-low temperature cycle test

• 100% test before delivery

• FTTH Cabling solution could be design


1x9 Splitter Specification

Split ratio (%) 85/15 80/20 70/30 60/40
Operating wavelength (nm) 1260-1650
Fiber type G657A or customized
IL max(dB) channel 1 1.6 1.8 2.1 2.7
channel 2-9 21.0 18.6 16.5 15.1
IL uni(dB) Channel 2-9 1.8 1.8 1.8 1.8
Return loss (dB) ≥55
Directivity (dB) ≥55
PDL (max.) 0.3 0.3 0.3 0.3
Uniformity (max.) 0.8 0.8 0.8 0.8
Wavelength dependent loss (dB) ≤0.3
TDL (max.) 0.5
Operating temperature -40 ~+85
Storage temperature -40 ~+85
Dimension (mm) / LXWXH Bare fiber 60x7x4 60x7x4 60x7x4 60x7x4
900um 60x7x4 60x7x4 60x7x4 60x7x4
ABS box 120x80x18 120x80x18 120x80x18 120x80x18

Note:

1. Specified without connectors

2. Add an additional 0.2dB loss including connectors



Unbalanced optical splitter rate Detail information:

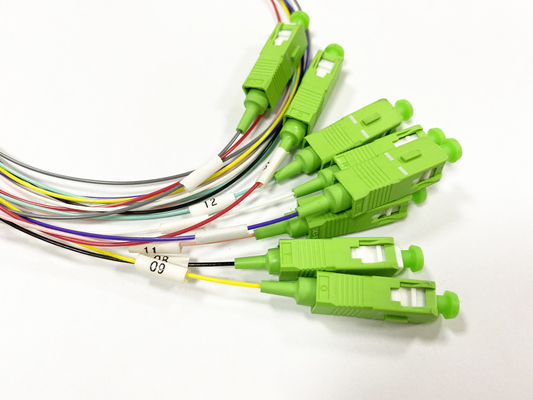

16Cores  MPO Elite PLC Splitter  8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room 0

1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green ,brown, gray, white, red, black, etc, with number marks to distinguish.

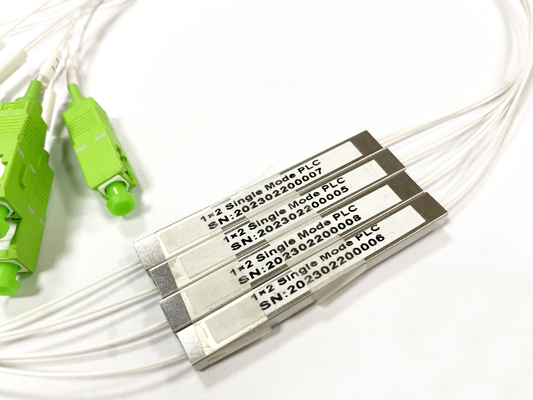

16Cores  MPO Elite PLC Splitter  8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room 1

In order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks;

Output of the optical splitter can divide into 70/30 80/20 60/40 or 85/15% 4types;

All types of optical connectors can be used, like SC FC LC ST; Polish method: UPC, APC;

Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc


GPON Splitter Application

  • Passive optical network (such as EPON, GPON, BPON, FTTX, FTTH, etc.)
  • Supports multiple users to share a single PON interface.

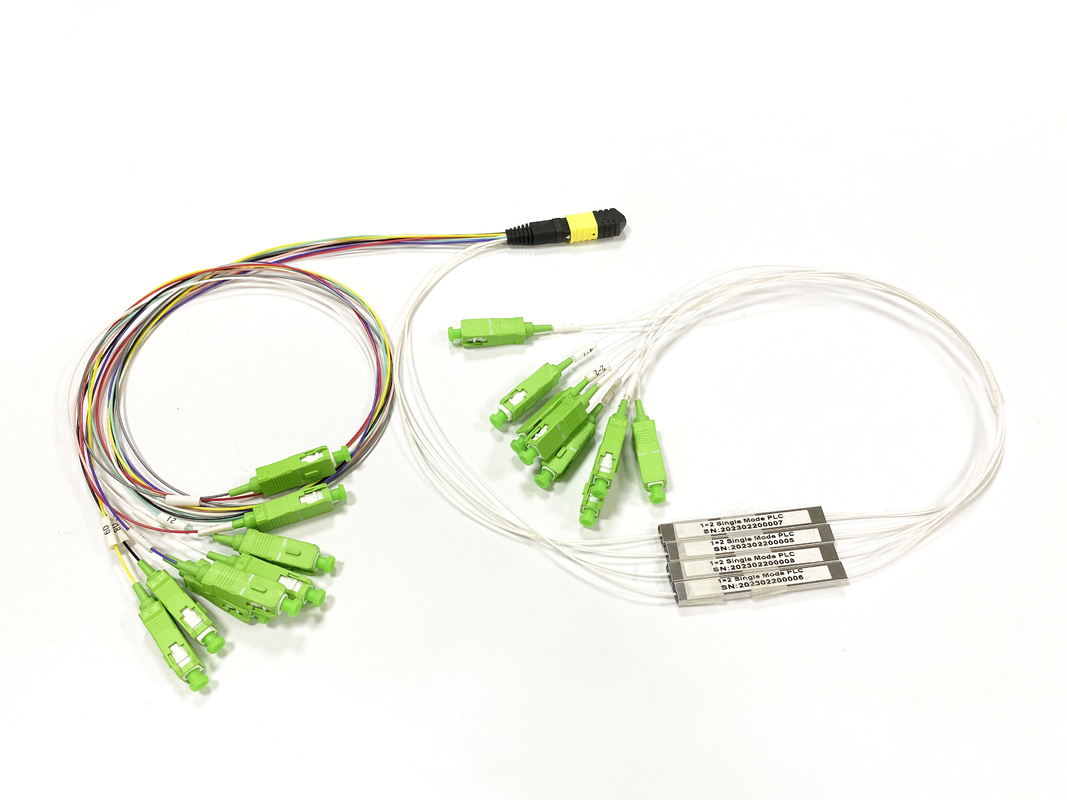

16Cores  MPO Elite PLC Splitter  8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room 2

If buy 1:9 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.

Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.



Frequently work with CTO fiber box



16Cores  MPO Elite PLC Splitter  8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room 3  16Cores  MPO Elite PLC Splitter  8cores MPO&8 Sca Coupler Splitter Hybrid Splitter For Data Center Service room 4

                             Fiber box CTO 10cores                                 Fiber box CTO 12cores
