DLC 4 Core Fiber Optic Cable Assembly Outdoor Waterproof FTTA Base Sation
1. GYFJH Cable
1.1 Structure:
1.2 Application
Mainly used in wireless base station horizontal and vertical cabling
1.3 Features
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data
transmission;
5, Meet various requirements of market and clients
1.4 Cable Parameters
|
Fiber count |
Cable dimension |
Tensile/N |
Crush N/100mm |
Min. Bend radius/mm |
Range of temperature/°C |
|||
|
Mm |
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
||
|
4 |
7 |
200 |
400 |
1100 |
2200 |
20D |
10D |
-20~+60 |
1.5 Connector Specification
|
Item |
Parameter |
|
Connector |
DLC/UPC |
|
Insertion loss |
≤0.3dB |
|
Return loss |
≥35dB |
|
Fiber mode |
Multi-mode,50/125um |
|
Operating wavelength |
850nm,1310nm |
|
Test wavelength |
850nm,1310nm |
|
Repeat ability |
≤0.1dB |
|
Interchange ability |
≤0.2dB |
|
Durability |
≤0.2dB |
|
Fiber length |
1m,2m.. Any length optional |
|
Length and tolerance |
10cm |
|
Operating temperature |
-40~+85°C |
|
Storage temperature |
-40~+85°C |

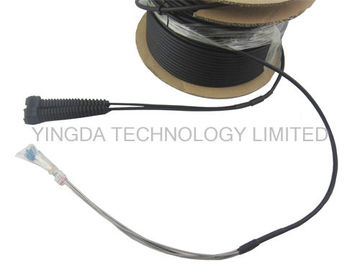

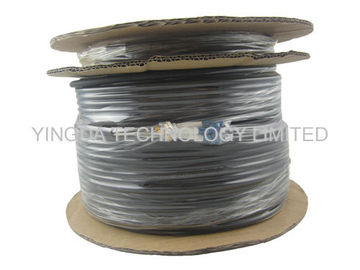

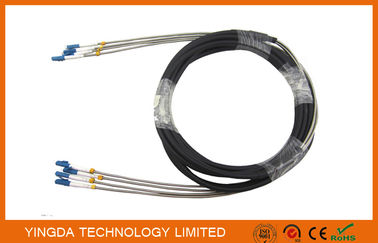

DLC 4core Optical cable assembly
Optical cable assembly, DLC/DLC, GYFJH, 4Core. Outdoor Protected Branch Cable More photos:
