| MOQ: | 500 pcs |
| Cena £: | 0.16USD-19.9USD |
| Standardowe opakowanie: | 1 pc/ bag, 1500pcs / carton box |
| Delivery period: | 7days after payment |
| metoda płatności: | Western Union, T/T |
| Wydajność dostaw: | 200,000 pcs per month |

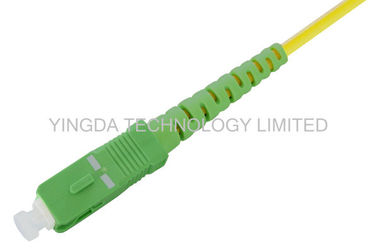

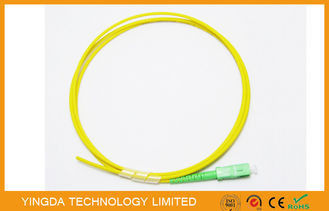

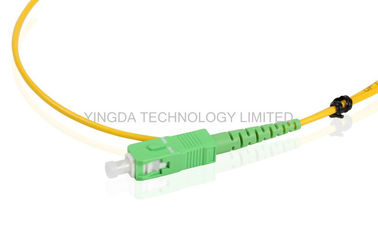

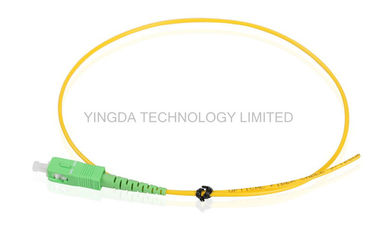

Fiber Optic Pigtail SC APC SM SX 1.5 Meter 3.0mm LSZH, SC APC SM SX Pigtail 3mm
SC is short for square card, it can plug directly,easy to use, but also easy to drop out. SC Fiber Optic
Pigtail is a component installed in a fiber optic transmission system that reduce the power in the optical
signal. It is often used to limit the optical power received by the photo-detector to within the limits of the
optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.
It is used in the fiber transmission system .
Features
Application
Specification
|
Parameter |
Unit |
FC, SC, LC/ Armoured fiber pigtail |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion loss (typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Operating temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
|
Storage temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
|
Cable diameter |
mm |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
||||||||
Ordering Information
SC / APC SM 9/125 SIMPLEX 3.0mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: SC/APC
② Ferrule End-face: APC 8degree
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um),
OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
