| MOQ: | 100 PCS |
| Cena £: | 0.04USD-2.15USD |
| Standardowe opakowanie: | 1 pc / bag or 10 pc/ blister box |
| Delivery period: | 3 days |
| metoda płatności: | T/T or western Union |
| Wydajność dostaw: | 50,000pcs per month |

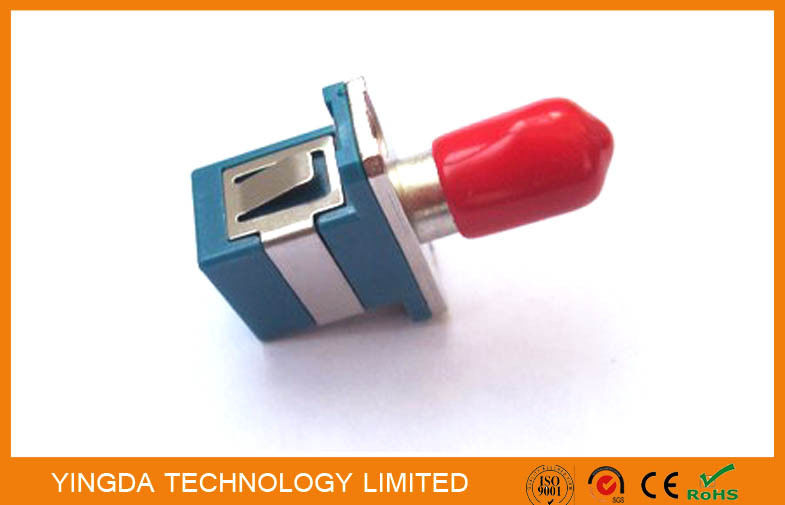

Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve
Description:
ST/SC Hybrid adapter can connect SC and ST both connectors on both ends,and provides APC end
face connection. Duplex or multiple adapter can improve the density of installation, save a space.
Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.
Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber
connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.
Features
Specification
|
Insertion loss |
≤0.2dB |
|
Insert-pull test |
1000 times |
|
Repeat ability |
≤0.1dB |
|
Tensile strength |
≥10kg |
|
Operating temperature |
-40°C~85°C |
|
Sleeve materials |
Ceramic or Metal |
|
Standard |
Bellcore TA-NWT-001209 |
|
Storage temperature |
-40°C~85°C |
SPECIFICATIONS
|
Insertion Loss |
<0.20 dB |
|
Plug and unplug force |
200-600(g/f) |
|
Durability |
plug and unplug 1000times |
|
Operating Temperature |
-40+85°C |
Order information
|
Housing Material |
Sleeve Material |
Channel |
|
zinc alloy |
Ceramic |
Simplex |
|
Plastic |
Phosphor bronze |
duplex |
We can offer all kinds of fiber optic adapters,100% test before delivery:
