| MOQ: | 50 pcs |
| Cena £: | 0.16USD-19.9USD |
| Standardowe opakowanie: | 1 pc/ box,100pcs / carton box |
| Delivery period: | 7days after payment |
| metoda płatności: | Western Union, T/T |
| Wydajność dostaw: | 60,000 pcs per month |

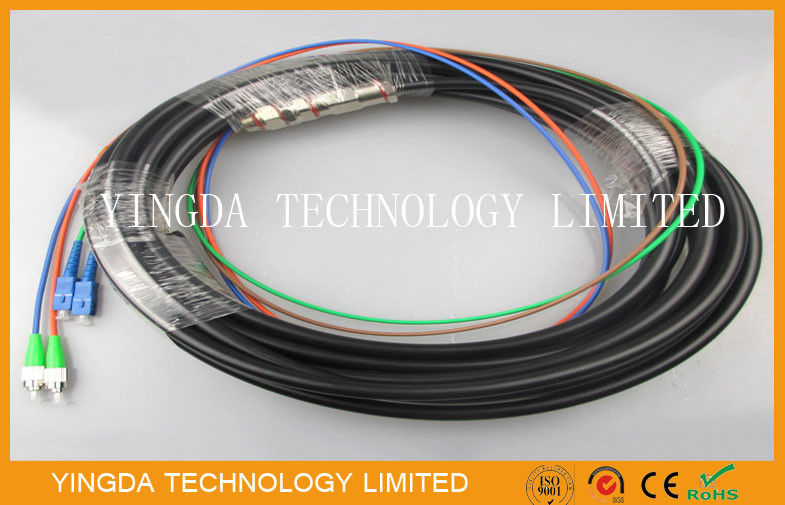

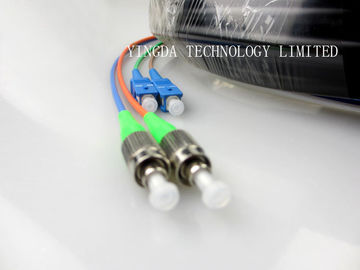

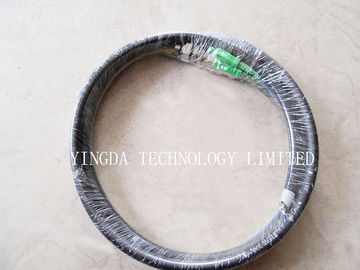

Outdoor Waterproof Fiber Optic Pigtail SC FC / APC 4 Core Patch Cord
Waterproof pigtail cable is to connect the backbone optical cable and optical receiver. It is made
of high quality connector components and high quality waterproof cable and anti-corrosion parts.
Its is mainly used for field optical transceiver access, strong adaptability to the environment, one
end with an optical connector and durable waterproof metal or aluminum connector.The installation
is convenient, reliable, can resist all kinds of harsh environment and long service life, outer jacket
high toughness, high tensile strength, good grounding device. According to customer requirements,
can be assembled connector like: FC, SC, ST, LC, MU, SMA,etc.
Application
Fiber jumper products are widely applied to communication room, FTTH, local area network,
optical fiber sensor, optical fiber communication system, optical fiber connection transmission
equipment, national defense,etc. It is suitable for the cable TV network, telecommunication
network, computer network and optical fiber test equipment. Mainly are:
Features
Technical parameters
|
Item |
Test condition |
Single mode |
Multi- mode |
||
|
Optical characteristics |
Insertion loss |
UPC |
SM:1310nm/1550nm MM:850nm/1300nm |
≤0.2dB |
≤0.3dB |
|
APC |
1310nm/1550nm |
≤0.3dB |
|
||
|
Return loss |
UPC |
SM:1310nm/1550nm MM:850nm/1300nm |
≥55 dB |
≥35 dB |
|
|
APC |
1310nm/1550nm |
≥65 dB |
|
||
|
mechanical properties (additional loss) |
Impact test |
1.8 height,8times |
<0.1 dB |
<0.1 dB |
|
|
Vibration test |
10-60Hz,1mm Full amplitude |
<0.1 dB |
<0.1 dB |
||
|
Plug life |
1000 times |
<0.1 dB |
<0.1 dB |
||
|
Tensile strength |
>100N |
<0.1 dB |
<0.1 dB |
||
|
Environmental characteristics (additional loss)
|
High and low temperature cycling test |
－25℃～＋70℃,2 recycle |
<0.2 dB |
<0.2 dB |
|
|
High temperature test |
+80℃,2hours |
<0.2 dB |
<0.2 dB |
||
|
Low temperature test |
-40℃,2hours |
<0.2 dB |
<0.2 dB |
||
|
Damp heat test |
+40℃,90-95%RH,2hours |
<0.2 dB |
<0.2 dB |
||
Order information
1. Connector: FC,ST,SC,LC,MU,MPO,E2000,SMA etc,
2. End face: PC,UPC,APC
3. Cable diameter: Ф0.9,Ф2,Ф3
4. Fiber count: 1core,2core,4core,6core,8core,12core,etc.
5. Fiber type: G652B, G652D, G655, G657A, G657A2, 50/125, 62.5/125,
OM3(50/125-150), OM4(50/125-300), etc
6. Connector color: blue, beige, green,aqua.
7. Boot color: gray, blue, white, red, black, green
8. Cable length: on customer request
wideo
|
|
