| MOQ: | 100 pcs |
| Cena £: | 1.1USD-4.58USD |
| Standardowe opakowanie: | 1pc/ box,100pcs/carton box |
| Delivery period: | 5-8days after payment |
| metoda płatności: | Western Union, T/T, MoneyGram |
| Wydajność dostaw: | 10,000 pcs per month |

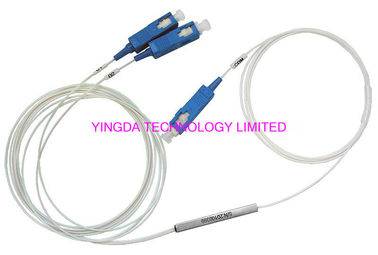

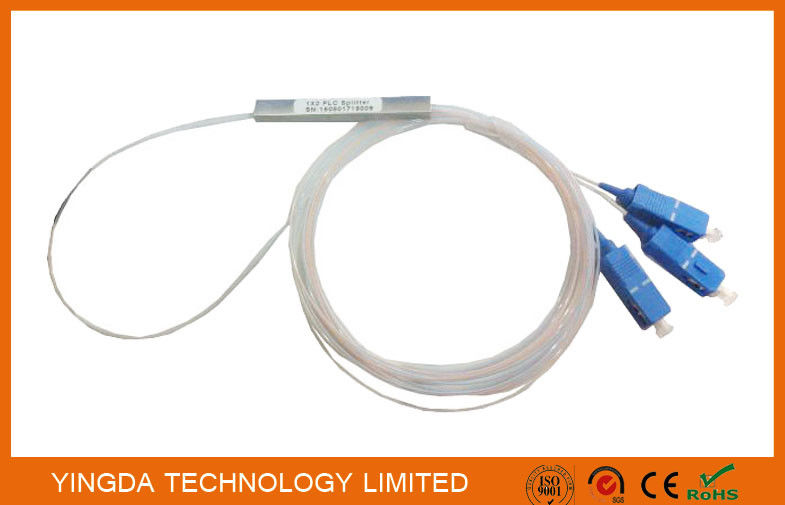

1x2 1:2 1*2 Steel Tube Splitter PLC 900um 1Meter LSZH G657A SC Connector UPC Polished
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.

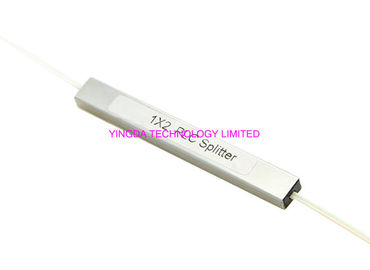

Steel tube size:
Features

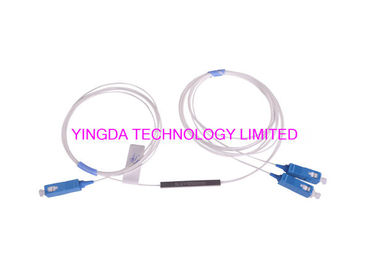

More pictures
PLC splitter steel tube can add connectors, SC/UPC or SC/APC
the cable diameter is 0.9mm, can be white or different color input and output.
Each cable have label ring to identify the split
steel tube can print: customer LOGO,product name serial number as per customer request
each PLC splitter will pack with 1pc test report when delivery.
package can be blister bag or carton box. For cost saving, we suggest carton box, it can also protect the fibers and products in a very good condition.
Specifications (1XN):
| Port Configration | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Insertion Loss (dB) | Typical | 3.5 | 6.8 | 10.2 | 13.1 | 16.2 | 20.2 |
| Max | 4.0 | 7.4 | 10.5 | 13.5 | 16.9 | 21.0 | |
| Channel Uniformity (dB) | 0.5 | 0.7 | 1.0 | 1.4 | 1.8 | 2.0 | |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| WDL (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | |
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | |
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 60X12X4 | 80(L)X20(W)X6(H) | ||||
| RL (dB) | > 55dB | ||||||
| Directivity (dB) | > 55dB | ||||||
| Fiber Type | G652D or G657A | ||||||
| Operating Temperature Range | -40ºC ~ 85ºC | ||||||
Specifications (2XN):
| Port Configration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Insertion Loss (dB) | Typical | 3.8 | 7.2 | 10.6 | 14.0 | 16.8 | 20.8 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.9 | 21.5 | |
| Channel Uniformity (dB) | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 | |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 | |
| WDL (dB) | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | |
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | |
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 80(L)X12(W)X4(H) | 80X20X6 | ||||
| RL (dB) | > 50dB | ||||||
| Directivity (dB) | > 55dB | ||||||
| Fiber Type | G652D or G657A | ||||||
| Operating Temperature Range | -40ºC ~ 85ºC | ||||||
