1 x 32 Spliter PLC Spliter Kabel światłowodowy 36 Fibres For Outdoor FTTH Splitting

36 Fibers SC Adapter Fiber Optic Splice Closure 1x32 PLC Spliter Optical Distribution Box

Model: GJS-306

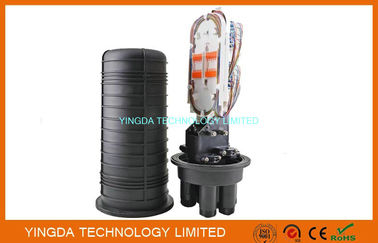

GJS-306 is dome splicing closure, It has function of direct connection and branch connection and

protection for connectors. Ip 68 RATED, IT CAN INSTALL 1 PC 2X32 plc splitter and 2pcs 2x 16 PLC

splitters, with four small cable inlets and 1 big cable inlet. Vulcanized rubber sealing material, suitable

for aerial, pole, wall mounted, and buried installation.

Features:

1. May be used for cut, uncut and taut sheath applications.
2. May be used for all fiber optic cable.
3. Sheath retention & central strength member termination system included.
4. Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack
5. Installation and reentry with a minimum of tools
6. All hardware are included
7. material:pp

Specification:

Standard package:

Dome, Base, Clamp,O-ring, metal storage basket, Splice Tray, Heat shrink protective sleeve, Cable ties, Grounding wire, Labeling paper, Installation Manual,

1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+2 pcs of aluminium paper(10cm x 10 cm)+sand paper(2.5 x30mm)+2 bags cleaning tissue+ branching clip etc

4 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of aluminium paper(10cm x 10 cm)+sand paper etc

Installation procedure

1. Open the closure
2. Choose the proper inlet to take out the fix screws
3. Put stripped cable into sealing part and base
4. Fix he cable and steel port
5. Put all sealing kits to inlet and fix screws
6. Splice, connection, cable storage, fix the trays
7. Clamp the base and case
8. Install the external part fix the closure body

KIND NOTES:

When customer install splitter himself, please pay attention to the cable length of splitter output

and input pigtails.

Order information

GJS-306-XX-XXX-XX-XX-XX-X-XX

                 1 - 2 - 3 - 4 - 5 - 6 - 7

More photos
