| Nazwa marki: | yingda |
| Numer modelu: | FTB86E |
| MOQ: | 100 PCS |
| Cena £: | 0.18USD-4.29USD |
| Czas dostawy: | 5-8days |
| Warunki płatności: | Western Union, MoneyGram, T/T |

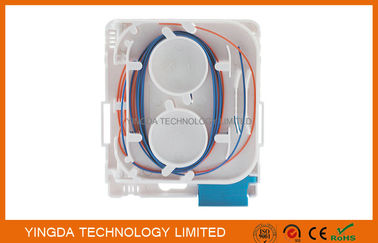

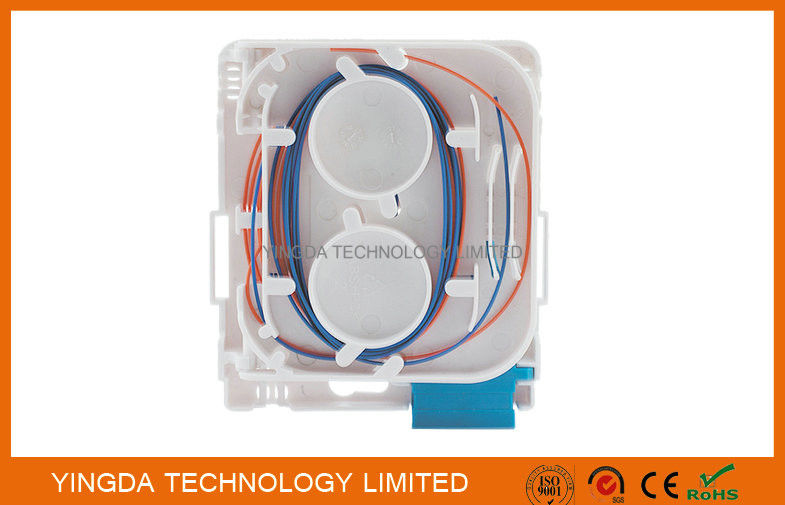

2 Cores SC Connectors Optical Network Terminal Box 2 Fibers Wall Mount Box
FTTH Fiber Socket is specially designed for FTTH (Fiber to The Home) for indoor application.
It is with a transparent door for dust proof.
Features
Specifications
| Model | Size | Max. Capacity | Color | Material | Ctn qty | Ctn size | Ctn weight |
| FTB86E |
H*W*D (mm) 116*85*22 |
SC: 1x Duplex LC: 2 x Duplex or 1 Quad |
White | ABS | 92pcs | 43*28.5*26cm | 9.8kgs |
Technical Performance
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber diameter | 125μm ( 652 & 657 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Single mode & duplex mode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85℃ |
| Adaptor | SC & LC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| Out ports | 1 |
Applications:
Wall-mounted installation
Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box
to match up the holes and use bolt to fasten.
More products of FTB86E show
YINGDA Produce all kinds of FTTH terminal box, socket panel, wall outlet for Fiber to the home network,
capacity 1 fibers, 2 fibers, 4 fibers all available. If you have inquiry, pls don't forget to send inquiry or questions. Thanks.
|
