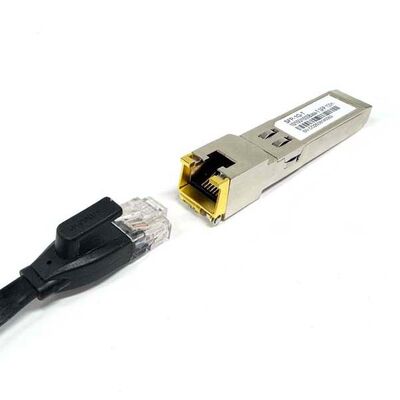

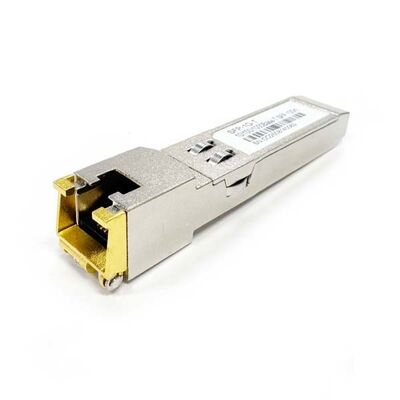

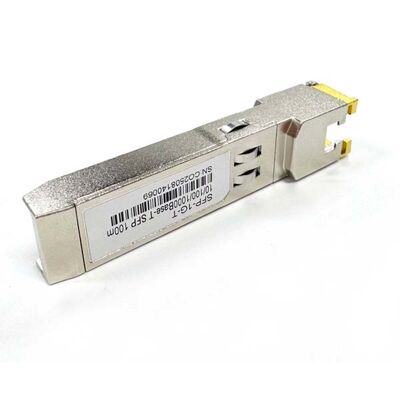

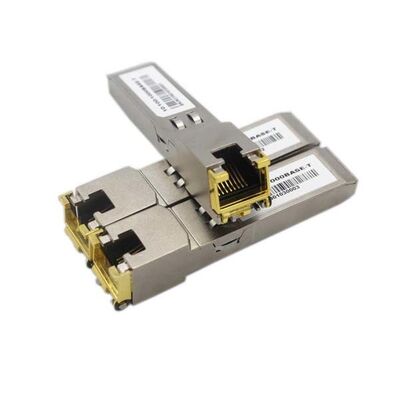

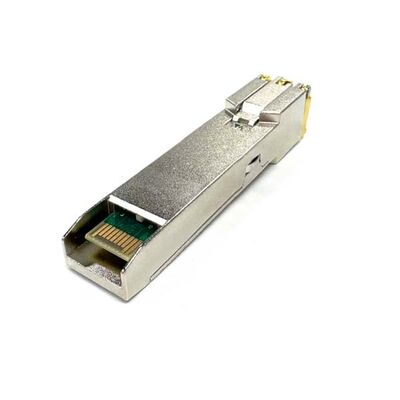

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network
SFP-1G-T Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100meters reach over unshielded twisted-pair category 5 cable. The module supports 10/100/1000Mbps auto negotiation data-links when the SFP interface support SGMII also. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of 0xA0- 0xA2 via the IIC BUS protocol.
Features:
|
Commercial |
0°C to +70°C |
|
Industrial |
-40°C to +85°C |
Mechanical Specifications(Unit:mm)
|
Descriptions |
||||
|
Pin |
Signal Name |
Description |
Plug Seq. |
Notes |
|
1 |
VeeT |
Transmitter Ground |
1 |
|
|
2 |
TX FAULT |
Transmitter Fault Indication |
3 |
Note1 |
|
3 |
TX DISABLE |
Transmitter Disable |
3 |
Note2 |
|
4 |
MOD_DEF(2) |
SDA Serial Data Signal |
3 |
Note3 |
|
5 |
MOD_DEF(1) |
SCL Serial Clock Signal |
3 |
Note3 |
|
6 |
MOD_DEF(0) |
TTL Low |
3 |
Note3 |
|
7 |
Rate Select |
Not Connected |
3 |
|
|
8 |
LOS |
Loss of Signal |
3 |
Note4 |
|
9 |
Veer |
Receiver ground |
1 |
|
|
10 |
Veer |
Receiver ground |
1 |
|
|
11 |
Veer |
Receiver ground |
1 |
|
|
12 |
RX- |
Inv. Receiver Date Out |
3 |
Note5 |
|
13 |
RX+ |
Receiver Date Out |
3 |
Note5 |
|
14 |
VeeR |
Receiver ground |
1 |
|
|
15 |
VccR |
Receiver Power Supply |
2 |
|
|
16 |
VccT |
Transmitter Power Supply |
2 |
|
|
17 |
VeeT |
Transmitter Ground |
1 |
|
|
18 |
TX+ |
Transmit Date In |
3 |
Note6 |
|
18 |
TX- |
Inv. Transmit Date In |
3 |
Note6 |
|
20 |
VeeT |
Transmitter Ground |
1 |
|
Detail information:
1.25G Copper SFP Module use metal bail clasp to pulling the optical transceivers outside of the SFP Port, it can turn 90 degree and then pull out of the module horizontally and softly.
YINGDA provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Wide Compatibility
Compatible with various brands of equipment,such as switches/routers/servers/transceivers or other devices with SFP interfaces.
