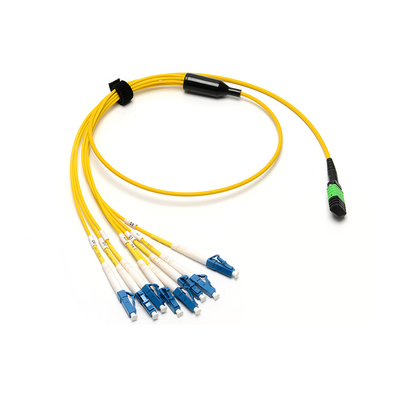

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network

Nazwa marki:	YINGDA
Numer modelu:	MPO-LC 8cores Elite
MOQ:	100
Cena £:	0.2USD-100USD
Czas dostawy:	5-8 working days
Warunki płatności:	T/T,AliPay,PayPal

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Place of Origin:

China

Orzecznictwo:

CE, ISO9001

Product Name:

MTP MPO Cable

Cable Jacket:

PVC LSZH

Insertion Loss:

≤0.35dB Elite

Storage Temperature:

-40℃~+85℃

Connector Type:

MTP/MPO

Cable Color:

Yellow

Fiber Count:

8, 12,24

Fiber Grade:

SM,OM3,OM4,OM5

Packaging Details:

Carton box

Supply Ability:

1000 pcs/day

Podkreślić:

8 cores MTP MPO breakout cable

female to LC duplex patch cord

MTP MPO cable for FTTH network

Opis produktu

MPO Cable Description

MPO/MTP ribbon and trunk mulit-core cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost.

MTP/MPO is used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged micro cables structure. The compact cable optimize cable way use and improve airflow.

These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion for demanding high speed networks where power budgets are critical.

Feature

【High Speed and High Density】This mpo fiber optic cable features premium quality multimode fiber,mpo om5 cables provides a secure and reliable connection,low insertion loss(IL≤0.35dB) and high return loss(RL≥60dB),support 10G/40G/100gigabit

【 MPO Breakout Cable Application】Residential area,industrial park room,commercial building optical signal connection,large data centers,building dense cabling system,fiber optic communication system,cable television network,telecommunication network LAN,GPON/EPON applications,wide area network,fttx

【Safety LSZH Jacket Multimode Fiber 】Our fiber patch cable featuring an lszh low smoke zero halogen jacket material(coefficient of frictionμ<0.2),offers fire resistance and minimal smoke and toxic fume production in case of a fire,and reliably operates within a temperature range of -20ºc to +70ºc

【Fast Delivery】Our MPO patch cable is one of thousands of fiber optic cable assemblies available in-stock and ready to ship. Lead time around 2-3 working days.

MPO Connectors Optical Parameters

Insertion loss(dB)	SM Standard		SM Elite	MM Standard	MM Elite
	≤0.7		≤0.35	≤0.7	≤0.35
Return loss(dB)	≥60			≥20
Durability (dB)	≤0.2, 500 times mating
Tensile strength(kgf)	10
Working temperature(℃)	-20 ~+70
Measurement wavelength(nm)	1310			850
Standards	IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc
Housing color	Green connectors+black boot	Yellow connector+black boot		OM1&OM2: beige connector+black boot OM3&OM4:aqua connector+black boot OM3&OM4: violet connector+black boot

Geometry parameters

Item	X-axis		Y-axis
	Min	Max	Min	Max
Radius of curvature(mm)	500	–	50	–
Polishing angle	0-0.2	0+0.2	8-0.2	8+0.2
Item	Min		max
Fiber height (nm)	1000		3000
Max fiber height error (nm)	600
Adjacent fiber height error (nm)	-300		+300
Avg. fiber height error (nm)	-300		+300
Central concave (nm)	300

LC/SC/FC Fiber Connectors

Fiber mode	Single Mode		Multimode
Connector polishing	PC	APC	PC
Insertion loss (dB)	≤0.3
Return loss (dB)	≥50	≥60	≥35
Repeatability(dB)	≤0.2, 1000 times mating
Working temperature(℃)	-40 ~+85
Measurement wavelength (nm)	1310		850

MPO Structure diagram

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 0

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 1

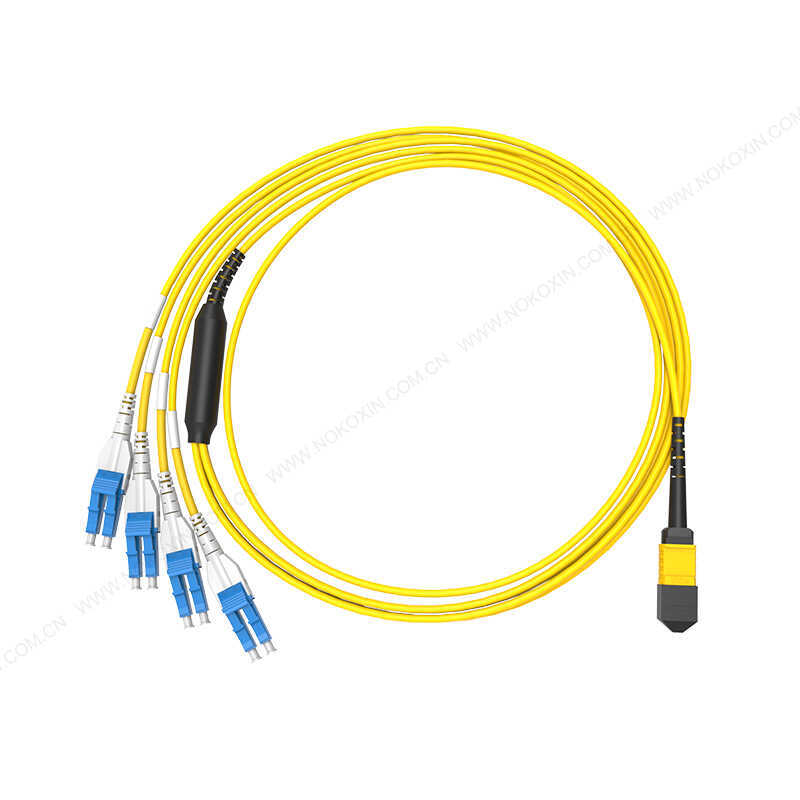

More MPO patch cord types for optional

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 2

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 4

YINGDA'S MPO Patch Cord Workshop

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 6

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 7

YINGDA MPO cable production teams is adopt multiple tests to strictly control quality for clients. 100% End-Face inspection and polarity test.
