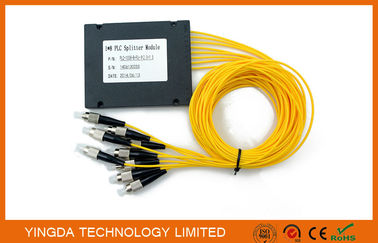

1*8 Fiber Optical Splitter Module, Plastic Box 100×80×10mm 1.5M G657A1 LSZH 2.0mm
Fiber Optic Planar lightwave circuit (PLC) splitter is a type of optical power management device
that is fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.
YINGDA provides whole series of 1xN and 2xN splitter products for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features
Compliance
Specification
|
Optical Parameter |
Wavelength Range: 1260~1650nm |
||||||||||||
|
1X4 |
1X8 |
1x16 |
1X32 |
1x64 |
2X4 |
2X8 |
2x16 |
2X32 |
|||||
|
Isolation Loss(dB) |
With Connector (Max) |
7.7 |
11.5 |
14.5 |
18.2 |
20.4 |
8 |
11.6 |
15.1 |
18.2 |
|||
|
Without Connector (Max) |
7.5 |
11.3 |
14.3 |
18.0 |
20 |
7.8 |
11.4 |
14.9 |
18 |
||||
|
Uniformity (dB) |
With Connector (Max) |
0.8 |
1.0 |
1.4 |
1.9 |
2.7 |
1.5 |
1.5 |
2.0 |
2.5 |
|||
|
Without Connector (Max) |
0.6 |
0.8 |
1.2 |
1.7 |
2.5 |
1.7 |
1.7 |
2.2 |
2.7 |
||||
|
PDL(dB) |
With Connector (Max) |
0.3 |
0.2 |
0.4 |
0.4 |
0.4 |
|||||||
|
Without Connector (Max) |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.4 |
|||||||
|
Return Loss(dB) |
With Connector (Mix) |
UPC: 45, APC: 50 |
|||||||||||
|
Without Connector (Mix) |
50 |
||||||||||||
|
Directivity (dB) |
Min. |
55 |
|||||||||||
|
Package Size |
(LxWxH mm) |
4x4x50 |
4x7x50 |
4x12x60 |
4x5x50 |
4x8x50 |
|||||||
|
Operation Temperature (°C) |
|
-40~+85 |
|||||||||||
|
Length of Pigtail(m) |
|
According to customer’s requirement |
|||||||||||
|
Type of Pigtail(mm) |
|
0.9,2 or according to customer’s requirement |
|||||||||||
|
Type of Connector |
|
FC, SC or according to customer’s requirement |
|||||||||||
Table 2 – 2×N PLC Splitter
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
|
Operating Wavelength (nm) |
1260~1650 |
||||
|
Fiber Type |
SMF-28e or customer specified |
||||
|
Insertion Loss (dB) |
4.2 |
7.6 |
11.0 |
14.5 |
17.5 |
|
Loss Uniformity (dB) |
0.8 |
1.5 |
1.5 |
2.0 |
2.5 |
|
Return Loss (dB) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization Dependent |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~85 |
||||
|
Storage Temperature (°C) |
-40~85 |
||||
|
Module Dimension (mm) |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
Notes
.Application
wideo
wideo
|
|
