| MOQ: | 100PCS |
| Cena £: | 0.18USD-4.29USD |
| Standardowe opakowanie: | 1 pc / box,10 pc/carton box |
| Delivery period: | 3-5 days |
| metoda płatności: | T/T or western Union |
| Wydajność dostaw: | 50,000pcs per month |

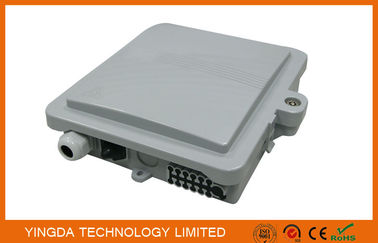

12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
Sell point:
Fiber Optic Termination Box is used at the junction point where armored cable and indoor
FTTH drop cable in optical fiber access network. The box can be wall mounting or pole
mounting, indoor and outdoor use; connect and adjust the armored and drop cable by
the SC fast field installation connector and SC fiber optic adapters.
Specification
|
Working temperature |
-40℃~+70℃ |
|
storage temperature |
-40℃~+70℃ |
|
humidity |
≤90%(+30℃) |
|
atmospheric pressure |
62Kpa -106Kpa |
|
insulation resistance between the grounding device and the box metal parts |
≥2X104MΩ/500V (DC) |
|
withstand voltage between the grounding device and the box metal parts |
≥3000V DC /1min |
|
insertion loss |
IL = 0.3dB (PC); IL = 0.3dB (APC type) |
|
return loss |
RL = 40dB (PC type); RL = 50dB (UPC); RL = 60dB (APC type) |
|
interchangeability |
< 0.2dB |
|
Cable port |
3in, 12 out |
|
Size |
25*23*7cm |
|
Material |
ABS PC alloy |
;
Sales and insertion loss: IL = 0.3dB (PC); IL = 0.3dB (APC type);
Sales return loss: RL = 40dB (PC type); RL = 50dB (UPC); RL = 60dB (APC type);
Features
1. Made of high-quality flame- retardant engineering plastics, good sealing performance and
weather resistance, suitable for indoor and outdoor wall mount, pole mount, protection
grade reaches IP55;
2. Special drop cable fixing position, ensure drop cabled fixed pulling out force ≥ 20N;
3. Dedicated passing hole for fast field installation connector(quick connector) , drop calbe
termination with quick connector can be carried out outside of the box, more convenient;
4. Reliable armored cable introduced, fixed, stripping and grounding protection device, max.
Fix 4pcs outdoor armored cable, equivalent to 2 in 2 out fiber optic cable joint box;
5. Multi-functional welding protective base, can satisfy 48 core welding protective sleeve or
24 core mechanical splicer.
6. Plate turning structure design, fully and rationally utilizing the space of the box, make sure
sufficient bending radius, and appropriate and reasonable space for routing redundant optical fiber;
7. ABS and PC alloy, service life: 25years
8. Dual layer design, upper layer for distribution, downward layer for splicing tray.
Application
wideo
wideo
wideo
wideo
wideo
wideo
|
|
| MOQ: | 100PCS |
| Cena £: | 0.18USD-4.29USD |
| Standardowe opakowanie: | 1 pc / box,10 pc/carton box |
| Delivery period: | 3-5 days |
| metoda płatności: | T/T or western Union |
| Wydajność dostaw: | 50,000pcs per month |
12 Core Plastic Optical Terminal Box, 12 Port Optical Fiber Termination box
Sell point:
Fiber Optic Termination Box is used at the junction point where armored cable and indoor
FTTH drop cable in optical fiber access network. The box can be wall mounting or pole
mounting, indoor and outdoor use; connect and adjust the armored and drop cable by
the SC fast field installation connector and SC fiber optic adapters.
Specification
|
Working temperature |
-40℃~+70℃ |
|
storage temperature |
-40℃~+70℃ |
|
humidity |
≤90%(+30℃) |
|
atmospheric pressure |
62Kpa -106Kpa |
|
insulation resistance between the grounding device and the box metal parts |
≥2X104MΩ/500V (DC) |
|
withstand voltage between the grounding device and the box metal parts |
≥3000V DC /1min |
|
insertion loss |
IL = 0.3dB (PC); IL = 0.3dB (APC type) |
|
return loss |
RL = 40dB (PC type); RL = 50dB (UPC); RL = 60dB (APC type) |
|
interchangeability |
< 0.2dB |
|
Cable port |
3in, 12 out |
|
Size |
25*23*7cm |
|
Material |
ABS PC alloy |
;
Sales and insertion loss: IL = 0.3dB (PC); IL = 0.3dB (APC type);
Sales return loss: RL = 40dB (PC type); RL = 50dB (UPC); RL = 60dB (APC type);
Features
1. Made of high-quality flame- retardant engineering plastics, good sealing performance and
weather resistance, suitable for indoor and outdoor wall mount, pole mount, protection
grade reaches IP55;
2. Special drop cable fixing position, ensure drop cabled fixed pulling out force ≥ 20N;
3. Dedicated passing hole for fast field installation connector(quick connector) , drop calbe
termination with quick connector can be carried out outside of the box, more convenient;
4. Reliable armored cable introduced, fixed, stripping and grounding protection device, max.
Fix 4pcs outdoor armored cable, equivalent to 2 in 2 out fiber optic cable joint box;
5. Multi-functional welding protective base, can satisfy 48 core welding protective sleeve or
24 core mechanical splicer.
6. Plate turning structure design, fully and rationally utilizing the space of the box, make sure
sufficient bending radius, and appropriate and reasonable space for routing redundant optical fiber;
7. ABS and PC alloy, service life: 25years
8. Dual layer design, upper layer for distribution, downward layer for splicing tray.
Application
