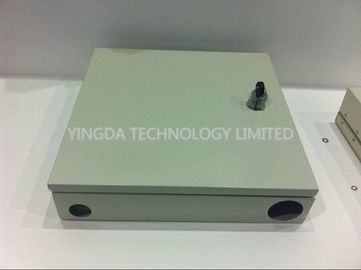

48 Core 72 Port Fiber Optic Termination Box, 48 Port Wall Mount Termianl Box

MOQ:	100 pcs
Cena £:	0.18USD-4.29USD
Standardowe opakowanie:	1pc / box, 3 pcs / carton box
Delivery period:	8 days after payment
Wydajność dostaw:	500,000 pcs per month

Szczegółowe informacje

Opis produktu

Oceny i recenzje

Szczegółowe informacje

Miejsce pochodzenia

Chiny

Nazwa handlowa

YINGDA

Orzecznictwo

ISO SGS ROHS

Model Number

GP(05)B-48/72

material:

cold rolled steel

color:

white

max capacity:

72 fibers

adapter:

FC SC ST LC

cable ports:

2 Pcs

application:

FTTH FTTX FTTB ODN PON network

48cores dimension:

455*405*120mm

thickness:

1.0mm

fiber type:

singlemode, mulitmode

Podkreślić:

fiber optic terminal box

fiber optic distribution box

Opis produktu

48 Core 72 Port Fiber Optic Termination Box, 48 Port Wall Mount Termianl Box

Sell point:

can install 48 pcs / 72 pcs SC fiber adapter
can install 48pcs or 72pcs SC pigtails or 12 cores bunchy fiber pigtails as well
outdoor wall mounting, mounting full screws provide.
whole body waterproof, long term life
sample or customer logo label ok
MOQ: 50 PCS
by sea or by air shipment available
FOB EXW CNF CIF trade term ok
can use our forwarder or your own carrier

Fiber Optic Wall Mount Distribution Box GP(05)B series is distribution equipment to connect,protect

and management the fiber and cable in fiber optic communication network. It consist of termination

access module and rack. The device can realize the optical fiber fixed, ground protection, optical

fiber connection, rational distribution, redundant fiber coiling, distribution scheduling,etc.

Features

Available for small capacity communication system,wall mounting,compact structure,harmonized
with machine room

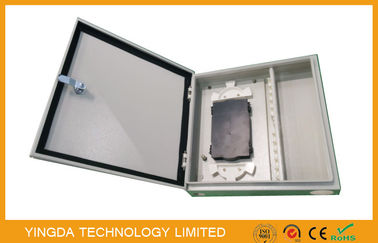

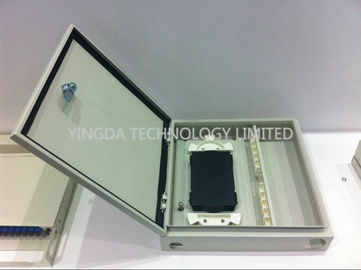

The cabinet is composed of two parts,one links with optical cables for fusion
connection between optical cable and fiber pigtail and another links with patch cord.
Provide fusion and storage for optical cables
Reliable protection appliance of fixing,stripping and earthing for optical cables.
Whole range protected design for fiber lay to ensure the bending radius=40mm
Provide various accessories to avoid any unexpected damage to the fiber

Specification

Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

GW.

(kg)

Qty/carton

(pc)

GP(05)B-48

455*405*120

500*450*490

27.0

GP(05)B-72

455*405*150

500*450*390

20.5

Electrical and Envrionment properties

Connector attenuation (insertion, exchange, repeat)	≤ 0.3dB
Return loss:	APC≥60dB,UPC≥50dB,PC≥40dB
Insulation resistance	≥1000MΩ/500V (DC)
High voltage	3000V (DC) /1min, no breakdown, no arc.
Grounding wire cross-sectional area	>6mm2, obvious grounding symbol
working temperature	-40 degrees ~+70 degrees
storage temperature	-40 degrees ~+70 degrees
Humidity	<90% 3: (+30 C)
atmospheric pressure	62Kpa ~ 106Kpa
Service life	20years

Note:

Cold rolled steel sheet,electrostatic spraying.
Available for 48-72pcs adapters FC,ST,SC,LC
Wall mount
max capacity: 72cores

Application

Cable introduce, fix and strip protection, optical fiber splice and protection, pigtail storage,
patch cord storage and management, optical fiber fixed connected and cross connection;
It also can install optical splitters, wave division multiplexer WDM and other value-added module
according to the requirements of customers.
Terminate, use and manage between wiring room and equipment room.

48 Core 72 Port Fiber Optic Termination Box, 48 Port Wall Mount Termianl Box 0
