| MOQ: | 100PCS |
| Cena £: | negocjowalne |
| Standardowe opakowanie: | 1 pc / plastoc bag |
| Okres dostawy: | 3-5 days |
| metoda płatności: | T/T or western Union |
| Wydajność dostaw: | 50,000pcs per month |

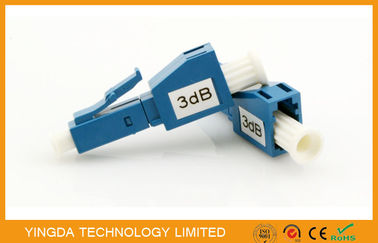

LC/PC Optical Attenuator Male to Female Fiber Optic Attenuator LC/UPC 3dB
Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable
attenuator which one end is connector type, the other end is adapter type (known as male to female) .
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation
in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
According to the ferrule end face it can be divided into PC and APC inclined eight degrees,
attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.
Due to mature production process, high test and quality control, now you can order 1dB,2dB,
3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.
Features
Application
Technical Parameter
|
Return Loss |
≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC) |
|
Attenuation Tolerance(dB) |
1-5dB＜±0.5 dB |
|
5-10dB＜±10% |
|
|
11-25dB＜±5% |
|
|
Operating Wavelength(nm) |
1310±10nm |
|
1550±10nm |
|
|
1310 and 1550±10nm |
|
|
Operating Temperature(℃) |
-40℃～+75℃ |
|
|
