| MOQ: | 100PCS |
| Cena £: | negocjowalne |
| Standardowe opakowanie: | 1 pc / plastoc bag |
| Delivery period: | 3-5 days |
| metoda płatności: | T/T or western Union |
| Wydajność dostaw: | 50,000pcs per month |

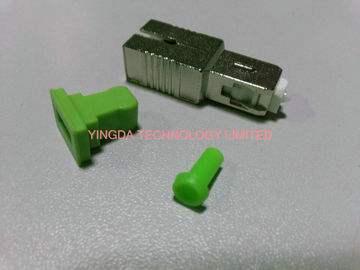

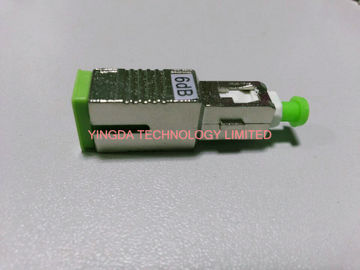

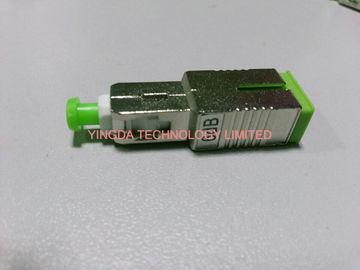

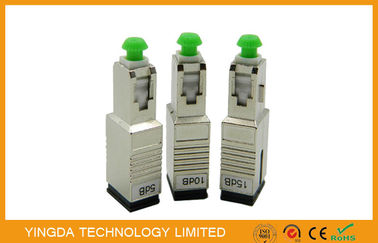

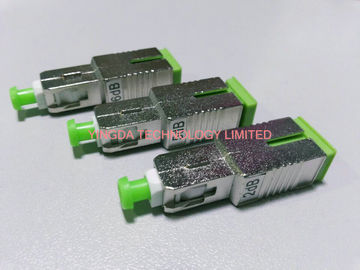

SC APC SM 1dB Attenuator, Fiber Optic Build Out Attenuator SC 1dB, SC Attenuator
Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable
attenuator which one end is connector type, the other end is adapter type (known as male to female) .
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in
order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
According to the ferrule end face it can be divided into PC and APC inclined eight degrees,
attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.
Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,
5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.
Features:
Material:
Specification:
|
Return Loss: |
Less than 50 dB (SPC) |
|
|
Less than 55 dB (UPC) |
|
|
Less than 65 dB (APC) |
|
Attenuation Accuracy: |
+/-0.5 (1-10) |
|
|
+/-1.0 (11-30) |
|
Polarization Dependent Loss: |
Less than 0.2dB |
|
Maximum Optical Input Power: |
200mW |
|
Operating Temp. Range: |
-40 ~ 80°C |
|
|
| MOQ: | 100PCS |
| Cena £: | negocjowalne |
| Standardowe opakowanie: | 1 pc / plastoc bag |
| Delivery period: | 3-5 days |
| metoda płatności: | T/T or western Union |
| Wydajność dostaw: | 50,000pcs per month |
SC APC SM 1dB Attenuator, Fiber Optic Build Out Attenuator SC 1dB, SC Attenuator
Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable
attenuator which one end is connector type, the other end is adapter type (known as male to female) .
Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in
order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.
According to the ferrule end face it can be divided into PC and APC inclined eight degrees,
attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.
Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,
5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.
Features:
Material:
Specification:
|
Return Loss: |
Less than 50 dB (SPC) |
|
|
Less than 55 dB (UPC) |
|
|
Less than 65 dB (APC) |
|
Attenuation Accuracy: |
+/-0.5 (1-10) |
|
|
+/-1.0 (11-30) |
|
Polarization Dependent Loss: |
Less than 0.2dB |
|
Maximum Optical Input Power: |
200mW |
|
Operating Temp. Range: |
-40 ~ 80°C |
