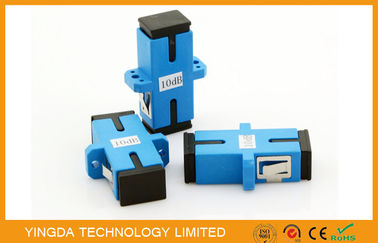

CATV 10 dB Optical Fiber Attenuator SM SC FC LC ST MU , Single Mode Fiber Attenuator

Name: CATV 10 dB Optical Fiber Attenuator SM SC FC LC ST MU , Single Mode Fiber Attenuator
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ATTN-SCS-01-B10
Price: 29.18 USD
Availability: InStock

Nazwa marki:	YINGDA
Numer modelu:	ATTN-SCS-01-B10
MOQ:	100PCS
Cena £:	negocjowalne
Czas dostawy:	3-5 days
Warunki płatności:	T/T or western Union

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Chiny

Orzecznictwo:

ISO

Attenuation:

10dB

wavelength range:

1200-1650nm

test wavelength:

1310nm /1550nm

material:

plastic PBT/ABS

Additional loss:

0.2dB

Working temperature::

-40～+75 (℃)

Fiber optic type:

single-mode

standard:

GR910, IEC

connector:

SC FC LC ST E2000 MU

connector color:

blue

Nazwa produktu:

adapter sieci światłowodowej, sprzęgło światłowodowe, adapter konwertera mediów, tłumiki mikrofalowe

Packaging Details:

50 pc / plastic blister box or

Supply Ability:

50,000pcs per month

Podkreślić:

optical fiber attenuator

inline optical attenuator

Opis produktu

CATV SC Attenuator 10 dB Optical Fiber Single Mode SM, SC FC LC ST MU

Fixed optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety

of optical fiber transmission line, high precision attenuation, stable and reliable performance.

Performance characteristics have no relationship with wavelength change, can realize the adapter

and attenuator both functions.

Due to its attenuation accuracy, high additinal loss,it is used in optical distribution frame, optical

fiber network system, the low speed optical fiber transmission system.

Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable

(VOA) type, according to connectors, can have MU, SC, ST, FC, LC etc..

From the microwave network point of view, attenuator is a two port lossy microwave networks.

It belongs to pass type microwave components.

FEATURES

Wavelength Independent
Low ripple
Excellent environmental stability
Design certified to more than 200mW continuous
Power handling capacity with no degradation in performances
Backreflection performance to < -55dB available
for UPC and < -60dB available for APC
Polarization insensitive

APPLICATIONS

Long Haul Telecommunication
Fiber in the Loop (FITL)
Local Area Networks (LAN)
Cable TV & Video distribution
Passive Optical Networks
Network Testing

Specification

Parameter	Condition	Value [dB]
Parameter	Condition	Min	Typical	Max
Attenuation			1 ~ 10
Attenuation			15, 20
Return Loss	SPC	> 40	> 45
	UPC	> 50	> 55
	APC	> 60	> 65
Attenuation Accuracy	1 ~ 10		±0.5
Attenuation Accuracy	15 ~ 20		±1.0
Operating Wavelength [nm]	1310 / 1550
Operating Temperature	-40℃ ~ +85℃
Humidity	75℃, RH 95%

CATV 10 dB Optical Fiber Attenuator SM SC FC LC ST MU , Single Mode Fiber Attenuator 0
