SC FC LC ST ODF Fiber Optic Patch panel 24 Port / network Patch Panel
Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.
WhatsApp:0086 18588475571
czat: 0086 18588475571
Skype'a: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xmaterial | cold rolled steel | color | black |
---|---|---|---|
capacity | 24 fibers | adapter | SC simplex adapter |
cable ports | 4 pcs | application | FTTH FTTX FTTB ODN PON network |
dimension | 430*250*1U | thickness | 1.0mm |
High Light | optical distribution frame,sliding patch panel |

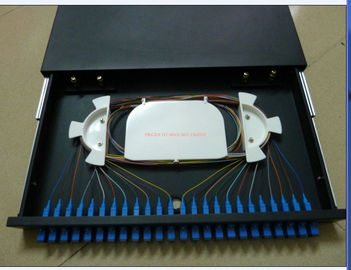

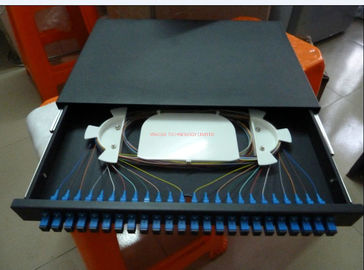

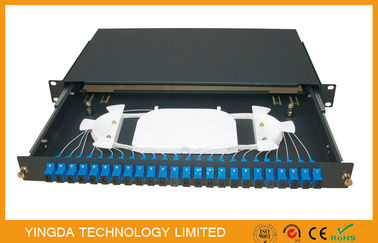

24 Port Fiber Optic Patch panel SC FC LC ST ODF Metal Sliding Drawer Patch Pane Cold Rolled Steel
Slding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical
fiber transmission communication network, which is suitable for indoor optical cable splice directly
and branch connection, and protective the fiber.
Features
- Applicable in the termination and 19'' standard structure,
- Metal sliding design
- rack mount in optical distribution frame ODF
- Suitable for FC,SC,ST,LC,E2000 adapters
- Cold rolled steel sheet, with electrostatic spraying
- Box size: 430*250*1U available,for cost save.
Patch Panel Structure
Cable terminal box is composed of 3parts: box body, internal components, optical fiber connector
protector.
1. Box body shell
Shell is convenient to open and install, have high voltage grounding device for the metal components.
2. Internal components.
A. support: the internal structure body, used for the internal support;
B. Splice tray: to store optical fiber connector, protection pieces and the remaining fiber, the remaining
optical fiber length≥1.6m, bend radius≥37.5mm, also have remark to identify the fiber;
C.: fixed device: to fix the optical cable sheath, strengthen member and wiring pigtail.
Protection parts of fiber optic connectors: sleeve and cable rubber gland
Specification
Type |
Dimension (mm) |
Max capacity (core) |
Carton size (mm) |
Qty/ carton (pc) |
G.w (kg) |
GPSM-1U-SC12 |
430*300*1U |
12 |
485*420*350 |
5 |
29 |
GPSM-1U-FC24 |
24 |
485*420*350 |
5 |
29 |
|
GPSM-1U-2SC24 |
48 |
485*420*350 |
5 |
29 |
|
GPSM-2U-FC48 |
430*300*2U |
48 |
500*355*550 |
4 |
26.5 |
GPSM-4U |
130*300*4U |
192 |
500*350*540 |
1 |
18.9 |
Environmental requirements:
Not suitable outdoor use, if need to use, should take protective measures.
Working temperature |
-25 to +40 °C |
Storage temperature |
-25 to +55 °C |
Relative humidity |
≤85% (30°C) |
Atmospheric pressure |
70 ~ 106kPa |
Service life |
20 years |
Material properties
Fiber Optic Patch panel materials is corrosion resistance, stable physical and chemical properties;
all material must be compatible, and is compatible with optical cable sheath and wiring pigtail sheath.
To prevent corrosion and other electrical damage, these materials must be compatible with the other
equipment used in the patch panel
1. If the patch panel use engineering plastics, its combustion performance shall be in accordance
with A GB/T5169.7 test, the test last for 30s.
2. optical fiber connector enhancement protector use materials and hot melt temperature filler shall
be not less than 120 °C, thermal softening temperature shall be not less than 90 °C, can be used in
a 25 ~+40°C temperature.
3. all materials should be non-toxic, non corrosive, on human health and other equipment element
side effects.
The appearance shall complete shape, no burr, no bubbles, no cracks and voids, warping, impurity
defects. All the background color should be uniformly continuous. Beautiful appearance and
convenient construction, low attenuation loss, reasonable structure, reinforced core is fixed in
the terminal box, the sheath has ground wire, suitable for fiber optic ribbon cable and indoor cable.
Unique design,19 inch rack or wall mount.
Mechanical properties
Tensile strength:should withstand axial tensile strength not less than 500N between cable terminal
box and the cable, and not less than 5N between wiring pigtail and terminal box.
Compression test: cable terminal box each should be able to withstand the vertical static pressure
not less than 200N.
Twist test : cable terminal box should be able to withstand the torsion angle.
