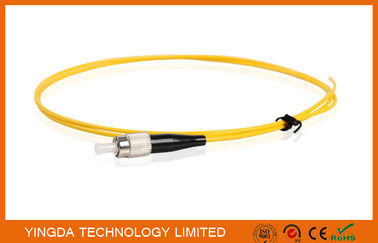

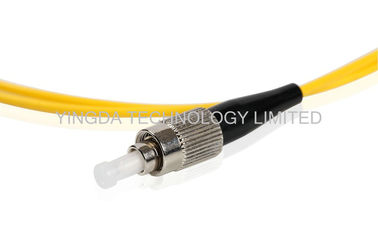

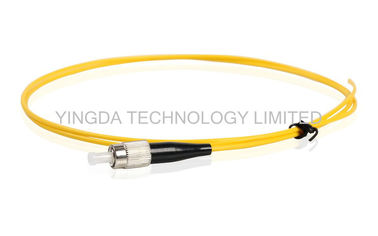

FC UPC SM SX Pigtail 1.6mm LSZH, Fiber Optic Pigtails FC PC Single Mode Simplex

FC UPC SM SX Pigtail 1.6mm LSZH, Fiber Optic Pigtails FC PC Single Mode Simplex
FC UPC SM SX Pigtail 1.6mm LSZH, Fiber Optic Pigtails FC PC Single Mode Simplex FC UPC SM SX Pigtail 1.6mm LSZH, Fiber Optic Pigtails FC PC Single Mode Simplex FC UPC SM SX Pigtail 1.6mm LSZH, Fiber Optic Pigtails FC PC Single Mode Simplex

Duży Obraz :  FC UPC SM SX Pigtail 1.6mm LSZH, Fiber Optic Pigtails FC PC Single Mode Simplex

Szczegóły Produktu:
Miejsce pochodzenia: Chiny
Nazwa handlowa: YINGDA
Orzecznictwo: ISO
Model Number: FPG-FC-OS1-1.6-1.5-Y
Zapłata:
Minimum Order Quantity: 100PCS
Cena: Negotiable
Packaging Details: 1pc in a plastic bag, customer logo or label design ok

FC UPC SM SX Pigtail 1.6mm LSZH, Fiber Optic Pigtails FC PC Single Mode Simplex

Opis
Fiber type: single mode fiber count: Simplex
cable type: fiber optic cable diameter: 1.6 mm
cable length: 1.5 meter connector boot: black boot, body: metal + plastic
polish mode: UPC, PC, SPC connector: FC
cable color: orange OEM: OK
ferrule: ceramic
High Light:

optical fiber pigtail

,

waterproof pigtail

FC UPC SM SX Pigtail 1.6mm LSZH, Fiber Optic Pigtails FC PC Single Mode Simplex





YINGDA offers an FC Tunable Pigtail with four-position tuning for applications requiring precise fiber

alignment. A specially designed FC PM Pigtail is available for use with Polarization Maintaining Fiber.



FC Fiber Optic Pigtail was one of the most popular Pigtails. It use a 2.5mm ferrule, but some of

the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you must make

sure you have the key aligned in the slot properly before tightening. It's been mostly replaced by

SC and LC. However,due to easy assemblies and installation, YINGDA produced FC Fiber Optic

Pigtails are every competitive.



FC Fiber Optic Pigtails is available in both single-mode and multimode, and is fully inter-mateable

with NTT-FC products. Both single-mode and multimode come with a zirconia ceramic ferrule with

pre-polished PC profile and convex spherical end. These end-face types allow for faster polishing,

and low back reflection and optical loss, while ensuring maximum repeat-ability.





Application

  • CATV network
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX network



Features

  1. Low Insertion Loss
  2. High Return Loss
  3. Good Exchange ability
  4. Good Repeat ability
  5. High Temperature Stability
  6. Comply with YD/T 1272.4-2007 specification
  7. 8 Degree Angled physical contact polishing (APC) can offer



Specification



Connector type

LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.

MU/AP Duplex MTRJ/Female, MTRJ/Male

Fiber Type

9/125um SMF-28 or equivalent (Single mode) OS1,

 (Multi-mode) 50/125um OM1, 62.5/125um OM2

& 50/125um, 10G OM3, OM4

Cable Type

Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm,

Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm,

Φ0.6mm buffered fiber

PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Single mode Master);

 ≤ 0.25dB (For Single mode Standard) ;

≤ 0.25dB (For Multi-mode) ;

Tested by JDS RM 3750

Return Loss

(For Single mode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeat ability

±0.1dB

Operating Temperature

-40°C to 85°C

Geometry Requirement

(For Single mode)

Ferrule End face Radius:

 7mm ≤ R ≤ 12mm (For APC);

10mm ≤ R ≤ 25mm (For Standard);

Apex Offset ≤ 30 μm (For Master);

Apex Offset ≤ 50 μm (For Standard);

Undercut -50nm ≤ U ≤ 50nm;

Tested by DORC ZX-1





Ordering Information


FC / UPC SM 9/125 SIMPLEX 1.6mm –1M LSZH

  ①  ②          ③           ④             ⑤        ⑥    ⑦



① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
