FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard

Chiny FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard dostawca
FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard dostawca FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard dostawca FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard dostawca FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard dostawca

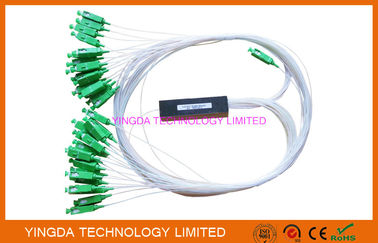

Duży Obraz :  FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard

Szczegóły Produktu:

Place of Origin: SHENZHEN,CHINA
Nazwa handlowa: YINGDA
Orzecznictwo: ISO
Model Number: 1x32 optical splitter

Zapłata:

Minimum Order Quantity: 100 pcs
Cena: negotiable
Packaging Details: 1pc/ box, 20pcs/carton box
Delivery Time: 5-8days after payment
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 10,000 pcs per month
Contact Now
Szczegółowy opis produktu
split ratio: 1*32 connector: SC/APC
fiber type: singlemode G657A1 insertion loss: 16.5dB
Uniformity (Max.): <1.3dB wavelength: 1260 - 1650 nm
PDL(Max.): 0.3dB Standard: Telcordia GR-1221 and GR-1209
steel tube: 80×20×6mm

FTTH Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard





YINGDA Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.



PLC SPLITTER 1X32 STRUCTURE

FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard





Features

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability



Applications

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution



Compliance

Telcordia GR-1209-CORE

Telcordia GR-1221-CORE

RoHS



Specifications



Parameters 1×32
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 16.5/16.9
Loss Uniformity (dB) 1.5
Polarization Dependent Loss(dB) 0.3
Return Loss (dB)(P/S Grade) 55/50
Directivity (dB) 55
Wavelength Dependent Loss (dB) 0.5

Temperature Stability

(-40~85 ℃)(dB)

0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Device Dimension (mm) 50×7×4
Module Dimension (mm) 140×115×18
Mini-Module Dimension (mm) 80×20×6



Notes:

1. Specified without connectors.

2. IL will be 0.15dB higher with connectors.





Product details



steel tube can include: product name, seral number or logo, and the input and output color, length,connector types can be customized.



FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia StandardFTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard



each splitter will test after add connectors before delivery.



FTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia StandardFTTx Mini Fiber Optic PLC Splitter 1x32 SC/APC 1Mts Green SMF IEC ROHS Telcordia Standard





Yingda Produce All Kinds Of Fbt Couplers And Plc Splitters From 1xn To 2xn Series..

For more details, pls send mail to us at: sales@ydpcable.com   contact: sophie wang
