Low PDL PLC Splitter Box Module SC / UPC G657A2 1.5M Blue , Fiber Optic Splitter

Podstawowe informacje
Place of Origin: SHENZHEN,CHINA
Nazwa handlowa: YINGDA
Orzecznictwo: ISO SGS ROHS
Model Number: YD-PLC-MM-104-FC-15
Minimum Order Quantity: 50 pcs
Cena: negotiable
Packaging Details: 1PC/BOX
Delivery Time: 5-8days after payment
Supply Ability: 10,000 pcs per month
Szczegóły informacji
connector: SC/UPC fiber type: single mode G657A2
insertion loss: 7.3/7.0dB Uniformity (Max.): 1.5 dB
wavelength: 1260 - 1650 nm PDL(Max.): 0.2 dB
Module size: 100×80×10 mm square tube size: 40×4×4 mm
flat tube size: 60×7×4 mm

opis produktu

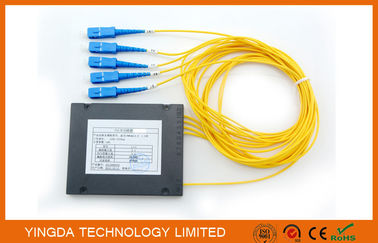

1:4 PLC Splitter Box Module SC/UPC G657A2 1.5M Blue, Fiber Optic Splitter


Planar lightwave circuit (PLC) splitter is a type of optical power management device that is
fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.


Features

  • Low Insertion Loss
  • Low PDL
  • High Isolation
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength
  • High Reliability and Stability


Applications

  1. FTTH
  2. PON Network
  3. CATV Links
  4. Communication Equipment


Specification
Table1 – 1×N PLC Splitter

Operating Wavelength(nm)

1260~1650

Fiber Type

G657A1 or as customers' order

Port Configuration

1x4

1x8

1x16

1x32

1x64

Insertion Loss (dB)

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.8

1.2

1.5

2

Polarization Dependent Loss(dB)

0.2

0.2

0.25

0.3

0.35

Wavelength Dependent Loss(dB)

0.3

0.3

0.5

0.5

0.5

Temperature Dependent Loss (-40~85 ) (dB)

0.4

0.4

0.5

0.5

0.5

Return Loss (dB)

55/50

Operating Temperature

-40~+85

Directivity (dB)

≥ 55

Storage Temperature

-40~+85



Table 2 – 2×N PLC Splitter


Parameters

2×2

2×4

2×8

2×16

2×32

Operating Wavelength (nm)

1260~1650

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)
(S/P Grade)

4.2

7.6

11.0

14.5

17.5

Loss Uniformity (dB)

0.8

1.5

1.5

2.0

2.5

Return Loss (dB)
(S/P Grade)

50/55

50/55

50/55

50/55

50/55

Polarization Dependent
 Loss(dB)

0.2

0.2

0.3

0.4

0.4

Directivity (dB)

55

55

55

55

55

Wavelength Dependent
 Loss(dB)

0.3

0.5

0.5

0.5

0.5

Temperature Stability
(-40~85 °C)(dB)

0.5

0.5

0.5

0.5

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85

Module Dimension (mm)
 (L×W×H)

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18


Notes:

  • Specified without connectors.
  • Add an additional 0.2dB loss per connector.
  • 1x64,1x128,2x64 also can be offered.
