1x16 Micro Splitter Fiber Optic Splitter Box 260*320*90mm SC/APC Adapter
Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.
WhatsApp:0086 18588475571
czat: 0086 18588475571
Skype'a: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xadapter | SC/APC | Capacity | 16 fibers |
---|---|---|---|
output | 16 FTTH drop cable figure-8 or self-supporting type. | Cable inport | 2 PCS |
PLC splitter | 1x16 micro splitter | Dimension | 260*320*90mm |
Material | high strength engineer plastic PC | Color | white |
Application | FTTH FTTX ODN PON network | adapter quantity | 16 pieces |
customer logo | ok | customer label | ok |
High Light | fiber optic closure,splitter distribution box |
16 Ports Optical Fiber Termination Box, 1:16 Splitter Optical Distribution Box Pole Mount FTTH Plastic
FTTH Splitter distribution box is used for the distribution connection of cable and fiber optic communication devices. It leads out the optic signal from drop cable to pigtails by splicing in the box(also for surplus cables and adapters). It can be used for protective connection of cable and layout pigtails, and fiber optic terminations of optic access network. It’s applicable for wall or pole mounted outside the building when cables already come to building in the FTTH project.
It also finishes straight through connection, Cable shall be spliced with indoor cable after stripping and coiling in the box, which finishes straight through connection, complying to traditional network transportation requirement.
The splitter distribution box can realize the functions of splitting, splicing, distribution and butterfly-like cable dispatch after cables to the floor in FTTH project. The bottom part is for incoming cable fixing,storage,splicing, and parking. The upper layer is for cable distribution with adapter panels, and fiber storage.
Features
- Industry Standard User Interface, be made of high impact plastic.
- Anti-UV, Ultra violet resistant and rainfall resistant.
- Maximum can use 16pcs FTTH drop cable 2*3.0mm
- Wall mounted or pole mounted
- Indoor and outdoor use, waterproof class IP65.
- 2 inlet ports, 16 outlet ports.
- SC LC ST FC adapter can use, simplex or duplex
- Max use 16pcs SC adapters
- Max use splitter 1x16 1pcs, 2pcs 1x8
- Pre-assembed adapters or pigtails and PLC splitter is available
Application
- Widely used in FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
More pictures

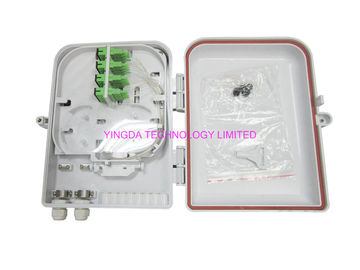

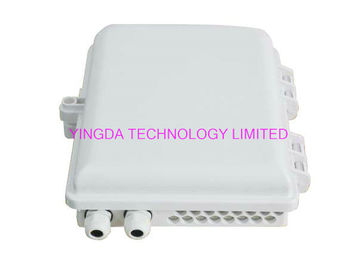

- box is white color, plastic key to pen and press-pull bottom with blot.
- plastic material.
- 2pcs cable ports for entry, an 16pcs cable ports for round indoor cable or ftth drop cable
- wall mounted or pole mount at back

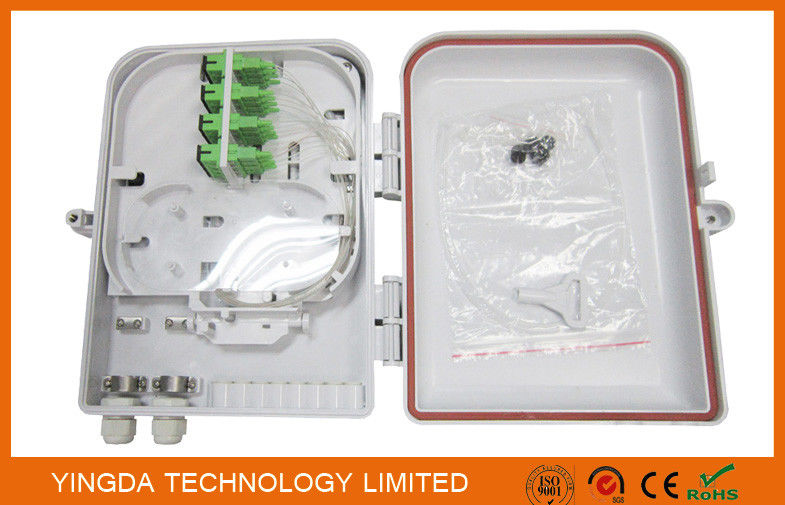

- there is rubber seal all around the box in red color, which prevents the box from water, humidity and harsh environment outside.
- it has double layer tray, upper layer for adapter panel and fiber routing or storage, down layer is for distribution, splitting or heatsrhink protection storage.
- the adapter panel is plastic, and fix by screws, it maximum can install 16pcs SC adapters simplex, or LC duplex.

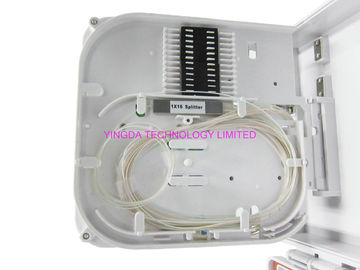

- there is a speical fixation place for PLC splitter steel tube, maximum hold 1x16 plc splitters and there is 24pcs heat shrink tube protection tray.
- the whole tray can be 90° angel rorate to ease on-site construction, during transporation,tighten the screws with box. Then it will be in place, not moving and break fiber, humanity design.
the whole splice tray can be taken off by hand and install it in the box self-clip.
Specification
Model | FDB-0216 |
Capacity | 16 port |
Material | PC |
Dimension | 260mm(W)x320mm(D)x115mm(D) |
Color | White |
Cable ports | 2inlet, 16outlets |
Adapter | SC, LC |
Splitter | Mini splitter 1x8,1x16 |
Working temperature | -40~+85°C |
Packing information
Model | N.W (kg/pcs) | Dimension of outer carton (mm) | G.W of outer Carton (kg/carton) | No of Products (pcs/carton) |
FDB-0216 | 1.80 | 550*355*620 | 19.8 |
10
|
