SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm

Miejsce pochodzenia Chiny
Nazwa handlowa YINGDA
Orzecznictwo ISO
Numer modelu FS-SCA-09-09G
Minimalne zamówienie 100 PCS
Cena Negotiable
Szczegóły pakowania 5 pieces or 10pcs / blister box
Czas dostawy 5 working days after got payment
Zasady płatności T/T or western Union
Możliwość Supply 500,000pcs per month

Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.

WhatsApp:0086 18588475571

czat: 0086 18588475571

Skype'a: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
application FTTH, LAN, ODF connector type SC / APC
fiber type SMF-28e cable type single mode 9/125um
cable diameter 0.9mm conneector house color blue
insertion loss max. <0.5dB, Typical<0.3dB return loss ≥65dB
High Light

quick assembly connector

,

FTTH connector

Zostaw wiadomość
opis produktu

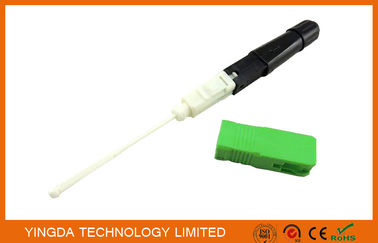

SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm



Description



SC/APC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point inside

the connector end, equivalently eliminate the pigtails when splicing.The advantage is no need

additional protection after splice, such as splice tray,splice closure,distribution box. In contract

to the design of mechanical splice connector, it save V-groove mechanical connector aintenance

and operation cost and durable, which overturns the concept that high cost of splice machine

and do not apply to FTTH construction.



Application

  • FTTH optic fiber terminal connection
  • LAN network
  • Reformation of  ODF and the new patch cord of ODF on site.


Features

  1. Low operation cost, high efficiency
  2. Quickly achieve the on-site termination connection
  3. Easy operation or use
  4. Pressure welding parts adopt new unique structure design
  5. installation without glue injectino, no grinding, no consumables
  6. High installation quality, high success rate and installation fast, etc
  7. Easy to carry
  8. Accurate mechanical dimensions
  9. All materials conforms to ROHS



Specification



Item

Parameter

Cable

0.9,20,3.0mm cable or drop cable

Fiber diameter

125um G657A1 bare fiber)

Tight buffer diameter

250um

Fiber type

Single mode OS1 9/125um

Insertion loss

≤0.3dB

Return loss

≤-50dB UPC, ≤-65dB APC

Bare fiber solid tightness

>250g

Working temperature

-40℃-+80℃

Tensible strength

60N(5kgs for 2mins)

Drop test

4 meters high cement floor direction at a time,in total 3times



Order information

FS-XXX-XX-XXX

         1- 2 -34

FS= fusion

splice

1

2

3

4

Connector type

Fiber inside

Applicable cable

diameter

House color

SCU=SC/UPC

SCA=SC/APC

FCU=FC/UPC

09=0.9mm

25=250um bare fiber

09=0.9mm

20=2.0mm

30=3.0mm

B=blue

B=black

G=green





Fusion Splice-on Connector Instruction Steps



1. Preparation

2. Put heat-shrink tube housing and nut through into the fiber cable

3. Use flat-fiber stripper to strip the covering about 45mm

4. Use the fiber stripper to strip the fiber coating layer ad clean the fiber ,then place the optial fiber to the holder.

5. Cut the fiber by fiber cleaver

6. Place the assembled holder into the fusion splice machine

7. Strip the 0.9mm fiber coating layer

8. Clean the optical fiber and put it into the holder of fusion splicer machine

9. Cut the fiber by fiber cleaver

10. Put the holder into the fusion splicer machine

11. After the two holder tools ready, close the fusion machine,start fusion

12. After fusing,open the machine and take out the whole spliced-connector carefully

13. Insert the heat-shrink tube to the tail of the spliced-connector carefully, then put the whole spliced connector into the fusion machine and start heating up

14. Remove the connector from fusion machine after about 90s heating, and then cooling down for about 5s to

10s.

15. Complete assembly





* Please use the customized FTTH melting machine



* Recommended consumable:

Keep a supply of the following items

  • Denatured alcohol
  • Lint-free tissues
  • Cotton swab

SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm 0SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm 1SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm 2SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm 3SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm 4SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm 5SC / APC Fusion Splice - On FIC Field Installable Connector SC 0.9mm 6
