GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication

Chiny GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication dostawca
GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication dostawca GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication dostawca GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication dostawca GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication dostawca GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication dostawca

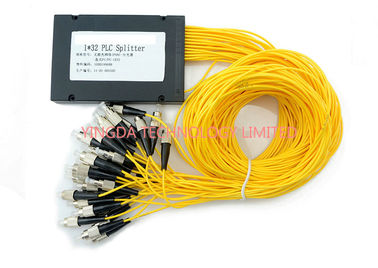

Duży Obraz :  GPON Low PDL 1*32 FC PLC Fiber Optic Splitter ABS Plastic For Data Communication

Szczegóły Produktu:

Place of Origin: SHENZHEN,CHINA
Nazwa handlowa: YINGDA
Orzecznictwo: ISO SGS ROHS
Model Number: YD-PLC-MM132-FC-15-30

Zapłata:

Minimum Order Quantity: 50 pcs
Cena: negotiable
Packaging Details: 1PC/BOX
Delivery Time: 5-8days after payment
Supply Ability: 10,000 pcs per month
Contact Now
Szczegółowy opis produktu
connector: FC fiber type2: Corning fiber SMF-28e
insertion loss: 16.9dB Uniformity (Max.): 1.5 dB
wavelength: 1260-1650nm PDL(Max.): 0.3 dB
plastic box module: 140*115*18 mm Fiber length: 1.5 meter
cable diameter: 3.0 mm Split ratio: 1x32 splitter Module

GPON Low PDL 1*32 SC PLC Splitter, Fiber Optic PLC Splitter Box1:32 ABS Plastic​





 Planar Lightwave Circuits (PLC) Optical Splitter are fully passive optical branching devices that exhibit very low inertion loss and PDL, great channel uniformity and a wide wavelength perative range.

These splitters are manufactrued and tested to Telcordia-1209-core & GR-1221-core to provide high performance,specifically designed to meet the tough requirement of FTTH,PON and CATV networks.



Applications


*  FTTH,FTTC,FTTB
*  Passive Optical Networks(PON)
* CATV networks and data communications
* Fiber optic equipment and systems



Features



1. The loss is not sensitivity to optical wave length to be transmitted .It can meet the transmission

    requirment of different wave.

2. Light splitting uniform.may distripute signal to customer uniformly.

3. The structure is compact .Small volume (1X32Splitter size :4X7X50mm).may install directly into

    present various cross connecting cabinet ,need not special desigh and leave larger installation space .

4. The branched channels of single element may reach to more 32 channels.

5. The cost of multichannel is low .The more the branched channel qualtity ,the cost advantage will be

    more obviously .



Specifications

 Table 1 – 1×N PLC Splitter Rack

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)(S/P Grade)

4.0/3.8

7.3/7.0

10.5/10.2

13.7/13.5

16.9/16.5

21.0/20.5

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.5

Return Loss (dB)

 (S/P Grade)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability

(-40~85 °C)(dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature

(°C)

-40~85

Storage Temperature

(°C)

-40~85







 Table 2 – 2×N PLC Splitter Rack



Parameters

2×2

2×4

2×8

2×16

2×32

Operating Wavelength (nm)

1260~1650

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)(S/P Grade)

4.2

7.6

11.0

14.5

17.5

Loss Uniformity (dB)

0.8

1.5

1.5

2.0

2.5

Return Loss (dB) (S/P Grade)

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.4

0.4

Directivity (dB)

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.5

0.5

0.5

0.5

Temperature Stability(-40~85 °C)(dB)

0.5

0.5

0.5

0.5

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85
