Fiber Tool Kits Visual Fault Locator

Miejsce pochodzenia Chiny
Nazwa handlowa YINGDA
Orzecznictwo ISO,SGS
Numer modelu FTF650H
Minimalne zamówienie 10 PCS
Cena Negotiable
Szczegóły pakowania 1pc / bag, 10pcs / carton box
Czas dostawy 5 working days after received your payment
Zasady płatności T/T or western Union
Możliwość Supply 500,000pcs per month

Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.

WhatsApp:0086 18588475571

czat: 0086 18588475571

Skype'a: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Wavelength 650±10nm power 25-50 mW
Frequency 2Hz / CW user distance 15 Km ~40 Km
color black material Aluminum
weight 80g without battery dimension Φ23.5mm * L 190 mm
High Light

fiber optic tool kits

,

fiber termination kits

Zostaw wiadomość
opis produktu

Handheld Fiber Tool Kits Visual Fault Locator VFL 20MW 650nm SC FC ST 40 KM





Description



Pen-type light /laser pen is easy to operate,convenient to carry.It can be used to do visual test for fiber,

cable or connector. When the tested fiber have a breakage,the transmission laser will leak out at that

place,then you can know where the fiber damage is. This way is available for single mode or multimode.

It is one of the necessary fiber test tools for site operation worker and fiber maintenance personnel.





Our light pen advantage



1. light pen don’t have fiber coupling inside, so the fiber end face separate with fiber pen to avoid direct

     contact (if direct contact, fiber pen end face is easy to dirty, should clean the fiber again).

2. sufficient power (1-50mW, no less than the power show on the label).

3.  the housing is insulate, excellent anti-static effect.





Features

  1. fiber breakage, bending fault locating;
  2. OTDR dead zone fault checking;
  3. end to end fiber identification;
  4. optimization of mechanical splice point



Application

  • Telecommunications
  • Broadcasting CATV engineering and maintenance
  • Integrated wring construction and maintenance
  • Optical device production and research
  • Other optical engineering



Specification



MODEL NO.

Handheld laser for fiber test FTF650H

Wavelength / power

650±10nm,20-50mW

Frequency

2Hz / CW

Laser class

CLASSⅢA; CLASSⅢb

power source

2 pieces of AA battery,can keep lighting for 3-4hours

Fiber mode

SM/MM

Optical Connector

2.5mm FC, SC, ST general interface,2.5mm general interface

Optional “FC2.5mm to LC1.25mm adapter”

Using distance

15 Km ~40 Km

Material of shell

Aluminum

Laser diode lifetime(h)

>3000h

Operating temperature

-10℃~+50℃

Storage humidity

-20℃~+70℃

Weight

80g(without battery)

Operating humidity

<90%

Dimension

Φ23.5mm * L 190 mm





Usage steps

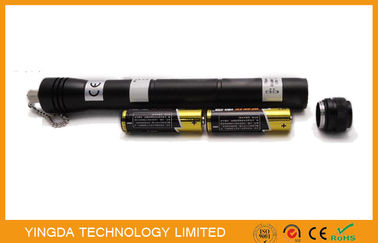

1. Take out of the product from the box and the cloth cover,check outer appearance,unscrew the

end cap, put in the battery subject to the sticker on the boot.



2. Screw the end cap,push the end lock switch and connect to the battery current.



3. Press the front mode select button.The first press,laser lit;the second press,laser strobe;the third

press,the laser off.



If test 1.25mm end face, you can buy optional our company 2.5-1.25mmadapter.



During test, please keep fiber end face and the product vertical direction, don’t swing around (if

necessary,use our company fixed adapter to fix the fiber head) so as not to damage the internal

ceramic sleeve. After test,please screw the protective cover.



4. When finish test, please press the end lock switch,shut off the battery current. New battery can

keep lighting for about 3-5hours(the higher the power,the shorter the using time).



Notice



If not used for a week, please take out of the battery in case of leakage and damage to the product.

Please do not disassemble the device, it will affect the warranty.

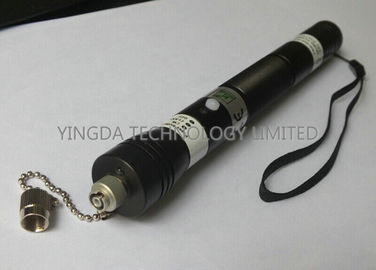

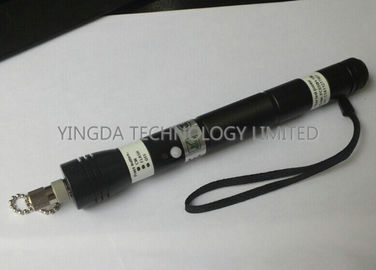

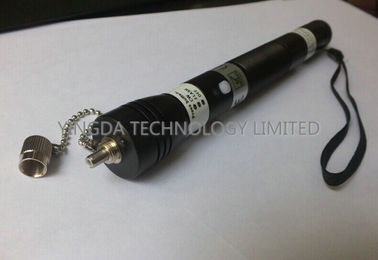

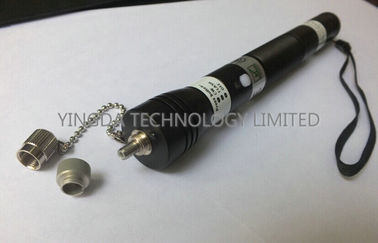

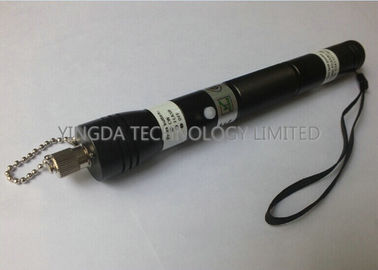

Fiber Tool Kits Visual Fault Locator 0
