xmaterial | cold rolled steel | color | white |
---|---|---|---|
capacity | 24 fibers / Cores | adapter | FC simplex |
cable ports | 4 pcs | application | FTTH FTTX FTTB ODN PON network |
dimension | 430*250*1U | thickness | 1.0mm |
fiber type | singlemode | pigtail | pigtail SC SM 1.5M 0.9mm |
High Light | rack mount odf,sliding patch panel |

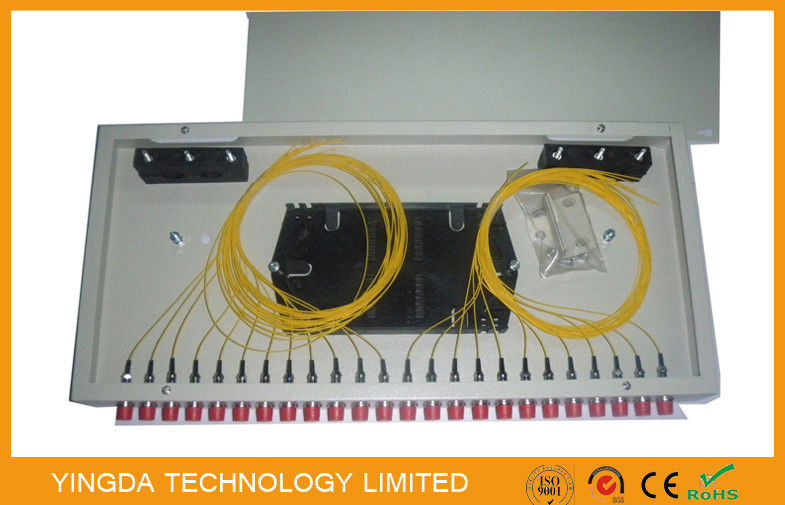

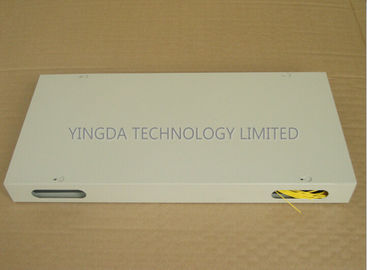

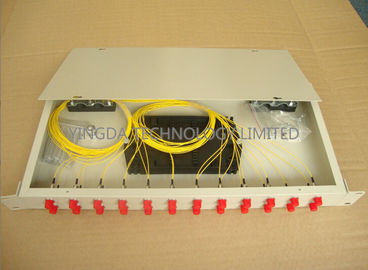

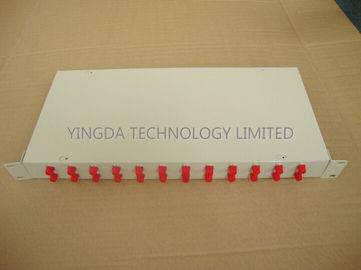

24 Port FC Rack Mount Fiber Optic Patch Panel, 24 Port Optical Distribution Frame
19" Standard rack mount Fiber optic patch panel are the auxiliary equipment for terminal wiring in
optical fiber transmission communication network, which is suitable for indoor optical cable splice
directly and branch connection, and protective the fiber.
Features
- Applicable in the termination and 19'' standard structure
- rack mount in optical distribution frame ODF
- Suitable for FC,SC,ST,LC,E2000 adapters
- Cold rolled steel sheet, with electrostatic spraying
- Box size: 430*300*1U
- max capacity; 48Cores 2U FC simplex
-
Artistic appearance,easy for pasting signs.
Specification
Type |
Dimension (mm) |
Max capacity (core) |
Carton size(mm) |
Qty/ carton (pc) |
G.W (kg) |
GPRF-1U-SC24 |
430*300*1U |
24 |
485*420*350 |
5 |
25 |
GPRF-1U-FC24 |
430*300*1U |
24 |
|||
GPRF-1U-2SC12 |
430*300*1U |
24 |
|||
GPRF-1U-2SC24 |
430*300*1U |
48 |
Material properties
Fiber Optic Patch panel materials is corrosion resistance, stable physical and chemical properties;
all material must be compatible, and is compatible with optical cable sheath and wiring pigtail sheath.
To prevent corrosion and other electrical damage, these materials must be compatible with the other
equipment used in the patch panel
1. If the patch panel use engineering plastics, its combustion performance shall be in accordance
with A GB/T5169.7 test, the test last for 30s.
2. optical fiber connector enhancement protector use materials and hot melt temperature filler shall
be not less than 120 °C, thermal softening temperature shall be not less than 90 °C, can be used in
a 25 ~+40°C temperature.
3. all materials should be non-toxic, non corrosive, on human health and other equipment element
side effects.
The appearance shall complete shape, no burr, no bubbles, no cracks and voids, warping, impurity
defects. All the background color should be uniformly continuous. Beautiful appearance and
convenient construction, low attenuation loss, reasonable structure, reinforced core is fixed in
the terminal box, the sheath has ground wire, suitable for fiber optic ribbon cable and indoor cable.
Unique design,19 inch rack or wall mount.
Technical characteristics:
- service life: 20 years
- Insulation resistance: ≥ 2×104MΩ (test voltage: 500VDC)
- withstand voltage strength: 1min no breakdown, no arcing phenomena under 15KV DC
- Fire-retardant class: UL94 VO 70Kpa-106Kpa
Working environment:
- Environmental temperature: -40 -+80°C
- Relative humidity: ≤85% (+30°C)
- Atmospheric pressure: protection level (EN60529): IP54, IP58.
