19" Fiber Optic Patch Panel
Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.
WhatsApp:0086 18588475571
czat: 0086 18588475571
Skype'a: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xcapacity | 24 fibers | dimension | 485*300*75 mm |
---|---|---|---|
weight | 4.7 kgs | connector type | FC/PC,SC/PC,SCAPC,FC/APC,LC/APC,ST/UPC |
welding tray qty | 2pcs x12 fibers | splice tray capacity | 12 fibers |
pigtail type | sc fc lc st pigtail 0.9mm1.5meter | material | cold rolled steel sheet |
metal thickness | 1.0 mm | color | white |
High Light | rack mount odf,optical distribution frame |

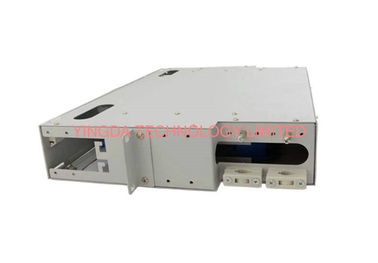

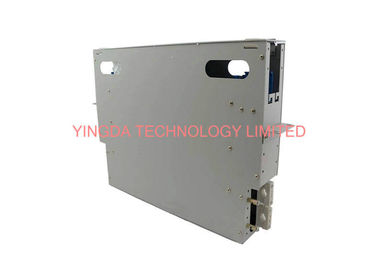

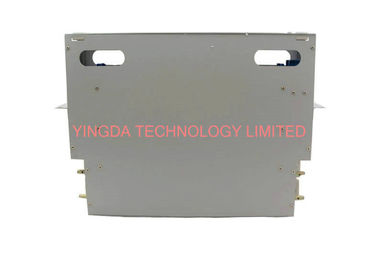

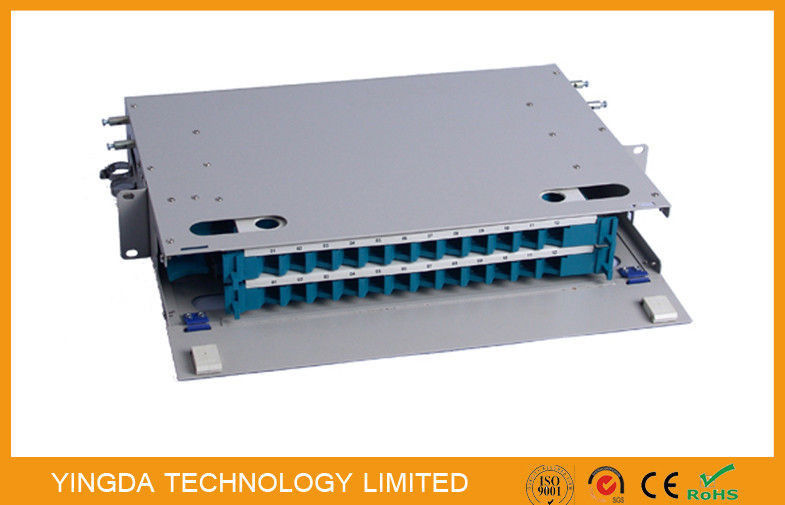

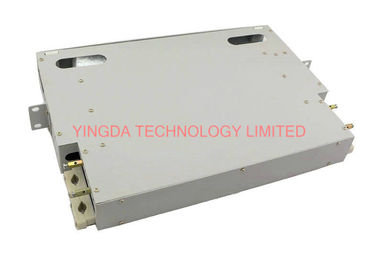

19" 24 Core Fiber Optic Patch Panel, 24 Port SC ODF Cable Distribution Box Cassette
24Cores ODF optical fiber distribution frame is standard 19" inch chassis, capacity 24Cores,
It is high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable
distribution in one set, each fused distribution module can be individually extracted, satisfy
the need of on and off the frame operation.
Large capacity optical distribution frame also are good operation, fused distribution module
can be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber
optic pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can
be directly welded.
Main Technical Parameters
- 19 inch rack standard use
- Environment temperature: -5 ~+45°C
- Relatively humidity:≤85% (+30°C)
- Atmospheric pressure:70~166 KPa
- Connector attenuation (Interchangeable and repeat): ≤0.5dB
- Insertion loss: ≤ 0.3dB
- Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
- Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC),
- 1min no breakdown, no arc
- Isolation resistance between high voltage protection place and distribution frame: ≥
- 100MΩ/ 500V (DC)
- By cascading 12 port splice integration module, configurable 12-144 core, 12 core
- per tray
- Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure
- the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.
Structure features
- Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
- The downward and the side door use imported lock
- The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
- Configure reinforced core and cable fixed seat,complete accessories
Performance advantage
- Good sealing performance, flexible configuration, quick installation
- Set three functions: the optical fiber splice, cable storage, cable distribution in one set
- Easy operation, reliable grounding, protect the safety
- The full protection of the jumping fiber, ensure the bending radius ≥ 40mm
24 Cores UNIT BOX Standard package
Box body |
1pc |
Screws |
4pcs |
Sleeve (40/45/60mm) |
24pcs |
Buffer tube |
1pc |
Welding module tray 12core |
2pcs |
Details
Capacity |
Spare parts |
Size/mm |
Net weight/kg |
12 core |
Splice tray, sleeve, buffer tube |
485*300*50 |
3.9 |
24 core |
Splice tray, sleeve, buffer tube |
485*300*75 |
4.7 |
48 coe |
Splice tray, sleeve, buffer tube |
485*300*140 |
6.9 |
96 core |
Splice tray, sleeve, buffer tube |
485*300*252 |
11 |
