Singlemode Fiber Optic Termination Box

Podstawowe informacje
Place of Origin: SHENZHEN,CHINA
Nazwa handlowa: YINGDA
Orzecznictwo: ISO SGS ROHS
Model Number: GP(05)D
Minimum Order Quantity: 100 pcs
Cena: negotiable
Packaging Details: 1pc / box, 5 pcs / carton box
Delivery Time: 8 days after payment
Supply Ability: 500,000 pcs per month
Szczegóły informacji
material: cold rolled steel color: white
max capacity: 24 fibers adapter: FC SC ST LC
cable ports: 4 Pcs application: FTTH FTTX FTTB ODN PON network
dimension: 350*300*80mm thickness: 1.0mm
fiber type: singlemode, mulitmode

opis produktu

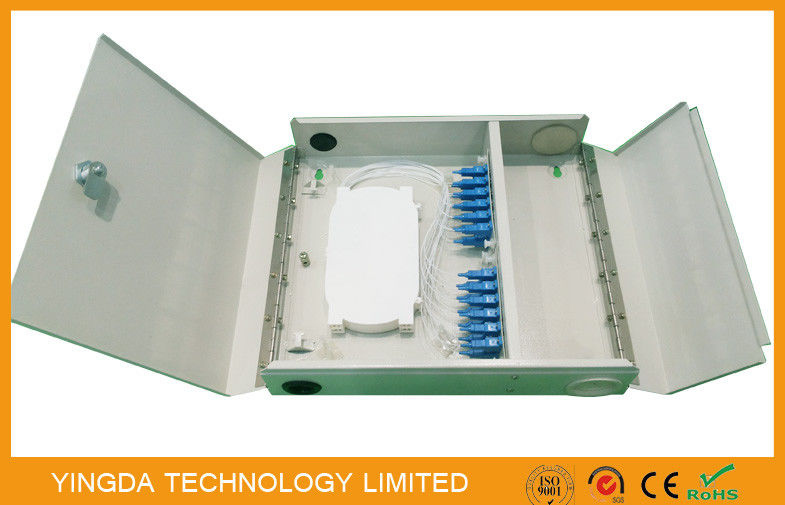

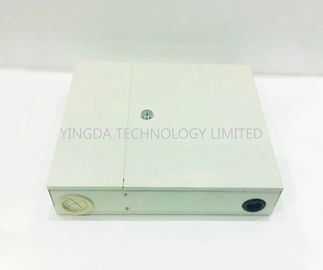

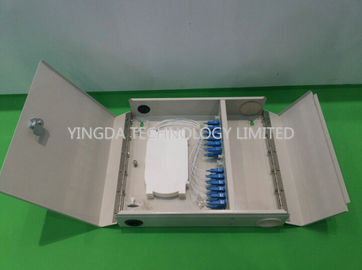

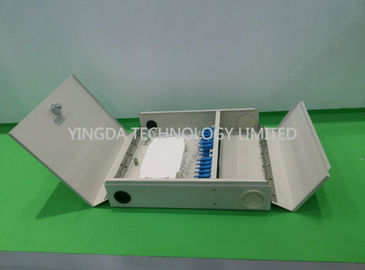

Wall Mount 2Door Metal Fiber Optic Termination Box, Wall Mount Box





Wall Mount Fiber Optic Cable Distribution Box GP(05)D series is distribution equipment to connect,

protect and management the fiber and cable in fiber optic communication networ. It consist of

termination access module and rack. The device can realize the optical fiber fixed, ground protection,

optical fiber connection, rational distribution, redundant fiber coiling, distribution scheduling,etc.





Advantage:

  1. Cold rolled steel sheet,electrostatic spraying.
  2. Available for 24pcs adapters FC,ST,SC,LC
  3. Wall mount
  4. max capacity: 24cores
  5. Dimension: 350*300*80mm ,small size
  6. package: plastic bag,bubble bag,then carton box
  7. 1  year guarantee
  8. two door open, with individual key, safe and easy to operate and convenient.



 Features

  1. Available for small capacity communication system,wall mounting,compact structure,harmonized with machine room
  2. The cabinet is composed of two parts,one links with optical cables for fusion
  3. connection between optical cable and fiber pigtail and another links with patch cord.
  4. Provide fusion and storage for optical cables
  5. Reliable protection appliance of fixing,stripping and earthing for optical cables.
  6. Whole range protected design for fiber lay to ensure the bending radius=40mm
  7. Provide various accessories to avoid any unexpected damage to the fiber



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

GW.

(kg)

Qty/carton

(pc)

GP(05)D-FC24

350*300*80

24

405*355*605

19.5

5

GP(05)D-SC24

350*300*80

24

405*355*605

19.5

5




Electrical and Envrionment properties



Connector attenuation

 (insertion, exchange, repeat)

≤ 0.3dB

Return loss:

APC≥60dB,UPC≥50dB,PC≥40dB

Insulation resistance

≥1000MΩ/500V (DC)

High voltage

3000V (DC) /1min, no breakdown, no arc.

Grounding wire cross-sectional area

 >6mm2, obvious grounding symbol

working temperature

-40 degrees ~+70 degrees

storage temperature

-40 degrees ~+70 degrees

Humidity

<90% 3: (+30 C)

atmospheric pressure

62Kpa ~ 106Kpa

Service life

20years





Application

  • Cable introduce, fix and strip protection, optical fiber splice and protection, pigtail storage,
  • patch cord storage and management, optical fiber fixed connected and cross connection
  • Ialso can install optical splitters, wave division multiplexer WDM and other value-added module according to the requirements of customers.
  • Terminate, use and manage between wiring room and equipment room.



Singlemode Fiber Optic Termination BoxSinglemode Fiber Optic Termination BoxSinglemode Fiber Optic Termination Box
