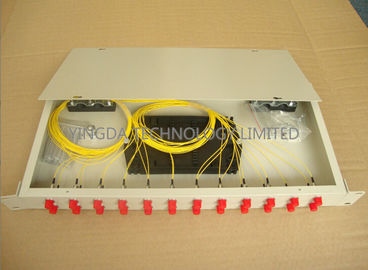

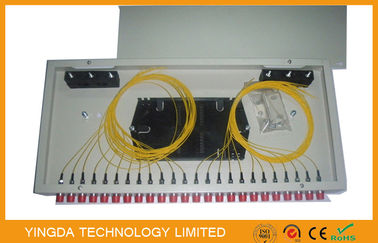

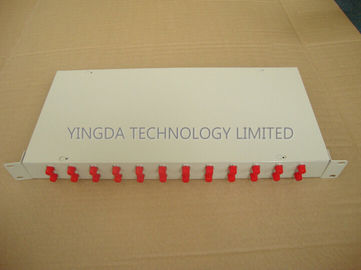

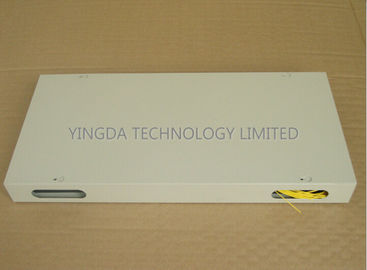

FC Rack Mount Single Mode Fiber Optic Patch Panel 24 Port , ODF Patch Panel White Metal

Miejsce pochodzenia Chiny
Nazwa handlowa YINGDA
Orzecznictwo ISO SGS ROHS
Numer modelu GPSM-SC24
Minimalne zamówienie 100 pcs
Cena negotiable
Szczegóły pakowania 1pc / box, 5 pcs / carton box
Czas dostawy 5-8days after payment
Możliwość Supply 500,000 pcs per month

Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.

WhatsApp:0086 18588475571

czat: 0086 18588475571

Skype'a: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
material cold rolled steel color white
capacity 24 fibers / Cores adapter FC simplex
cable ports 4 pcs application FTTH FTTX FTTB ODN PON network
dimension 430*250*1U thickness 1.0mm
fiber type singlemode pigtail pigtail SC SM 1.5M 0.9mm
High Light

rack mount odf

,

optical distribution frame

Zostaw wiadomość
opis produktu

24 Port FC Rack Mount Patch Panel, 24 Port ODF Patch Panel White Metal





19" Standard rack mount Fiber optic patch panel are the auxiliary equipment for terminal wiring in

optical fiber transmission communication network, which is suitable for indoor optical cable splice

directly and branch connection, and protective the fiber.





Features

  • Applicable in the termination and 19'' standard structure
  • rack mount in optical distribution frame ODF
  • Suitable for FC,SC,ST,LC,E2000 adapters
  • Cold rolled steel sheet, with electrostatic spraying
  • Box size: 430*300*1U
  • max capacity; 48Cores 2U FC simplex
  • Artistic appearance,easy for pasting signs.



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size(mm)

Qty/

carton

(pc)

G.W

(kg)

GPRF-1U-SC24

430*300*1U

24

485*420*350

5

25

GPRF-1U-FC24

430*300*1U

24

GPRF-1U-2SC12

430*300*1U

24

GPRF-1U-2SC24

430*300*1U

48







Material properties

Fiber Optic Patch panel materials is corrosion resistancestable physical and chemical properties;

 all material must be compatible, and is compatible with optical cable sheath and wiring pigtail sheath.

To prevent corrosion and other electrical damage, these materials must be compatible with the other

equipment used in the patch panel



1.  If the patch panel use engineering plastics, its combustion performance shall be in accordance

 with A GB/T5169.7 test, the test last for 30s.

2. optical fiber connector enhancement protector use materials and hot melt temperature filler shall

be not less than 120 °C, thermal softening temperature shall be not less than 90 °C, can be used in

a 25 ~+40°C temperature.

3all materials should be non-toxic, non corrosive, on human health and other equipment element

side effects.

The appearance shall complete shape, no burr, no bubbles, no cracks and voids, warping, impurity

defects. All the background color should be uniformly continuous. Beautiful appearance and

convenient construction, low attenuation loss, reasonable structure, reinforced core is fixed in

the terminal box, the sheath has ground wire, suitable for fiber optic ribbon cable and indoor cable.

Unique design,19 inch rack or wall mount.





Technical characteristics:

  • service life: 20 years
  • Insulation resistance: ≥ 2×104MΩ (test voltage: 500VDC)
  • withstand voltage strength: 1min no breakdown, no arcing phenomena under 15KV DC
  • Fire-retardant class: UL94 VO 70Kpa-106Kpa



Working environment:

  1. Environmental temperature: -40  -+80°C
  2. Relative humidity≤85% (+30°C)
  3. Atmospheric pressure: protection level (EN60529): IP54, IP58.
