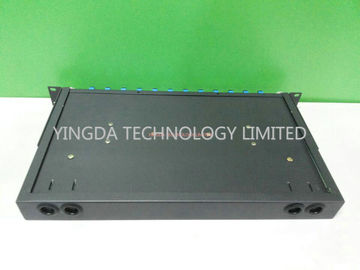

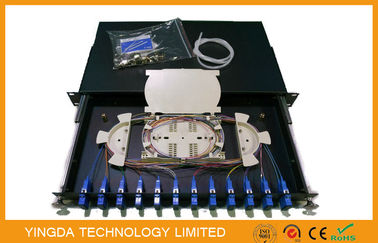

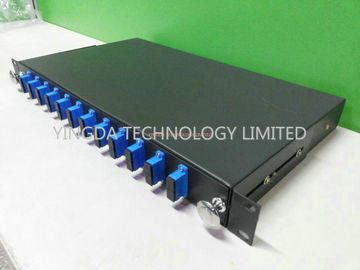

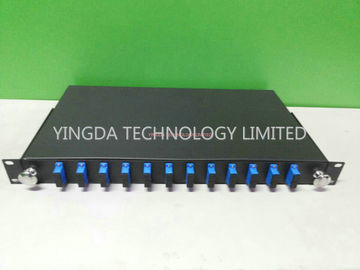

IP58 1U 19” Sliding Out wall mount Fiber Optic Patch Panel Indoor / Cable Tray

Podstawowe informacje
Place of Origin: SHENZHEN,CHINA
Nazwa handlowa: YINGDA
Orzecznictwo: ISO SGS ROHS
Model Number: GPSM-2SC12
Minimum Order Quantity: 100 pcs
Cena: negotiable
Packaging Details: 1pc / box, 5 pcs / carton box
Delivery Time: 5-8days after payment
Supply Ability: 500,000 pcs per month
Szczegóły informacji
material: cold rolled steel color: black
capacity: 24 fibers adapter: SC duplex 12pcs
cable ports: 4 pcs application: FTTH FTTX FTTB ODN LAN WAN network
dimension: 430*300*1U or 430*250*1U thickness: 1.0mm

opis produktu

1U 19” Sliding Out Patch Panel, 12 Port Fiber Optic Patch Panel SC Single Mode Duplex





GPSM series can be applied in branch connection of optical cable termination;

  1. Made of spray the surface of cold rolled sheet
  2. 19inch standard structure
  3. sliding design
  4. rack mount
  5. Suitable for SC FC LC ST adapters



Features

  1. protection cable and wiring pigtail connection
  2. make cable components and the box body insulate,easy to lead ground.
  3. to provide cable terminal place and the remaining fiber storage space, convenient
  4. installation and operation
  5. With strong impact strength box body, convenient in different places to install
  6. wall mount,rack mount or, directly placed in the groove
  7. not suitable used in the open air (outdoor), if you want to use, please use the
  8. corresponding protection measures
  9. single fiber splice tray capacity: 24 core



Technical characteristics:

  • service life: 20 years
  • Insulation resistance: ≥ 2×104MΩ (test voltage: 500VDC)
  • withstand voltage strength: 1min no breakdown, no arcing phenomena under 15KV DC
  • Fire-retardant class: UL94 VO 70Kpa-106Kpa



Working environment:

  1. Environmental temperature: -40  -+80°C
  2. Relative humidity: ≤85% (+30°C)
  3. Atmospheric pressure: protection level (EN60529): IP54, IP58.

Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

Qty/

carton

(pc)

G.w

(kg)

GPSM-1U-SC12

430*300*1U

12

485*420*350

5

29

GPSM-1U-FC24

24

485*420*350

5

29

GPSM-1U-2SC24

48

485*420*350

5

29

GPSM-2U-FC48

430*300*2U

48

500*355*550

4

26.5

GPSM-4U

130*300*4U

192

500*350*540

1

18.9
