Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua

Podstawowe informacje
Place of Origin: China
Nazwa handlowa: YINGDA
Orzecznictwo: ISO,SGS
Model Number: AD-LCM3-04
Minimum Order Quantity: 1000pcs
Cena: Negotiable
Packaging Details: 50cs / box
Delivery Time: 5 working days
Payment Terms: T/T or western Union
Supply Ability: 200km/ month
Szczegóły informacji
Fiber count: quad 4 fibers connector material: plastic
adapter color: aqua, blue,green sleeve material: ceramic
fiber type: single-mode, multimode polish mode: UPC, SPC, APC
working temperature: -40 ~ +85 °C wavelength: 1310nm/1550NM/850NM
house material: PBT / ABS connector: SC
flange: no have application: adapter panel, ODF frame, rack, cabinet, closure etc

opis produktu

Fiber Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua Fiber Adapter





Description



Our simplex plastic SC couplers are designed for mounting in standard rectangular cut out style panels.

 This series features either bronze or ceramic alignment sleeves to meet your specific design requirement.

 Additionally, these couplers can be used with PC or UPC style fiber connectors.



Simplex, duplex and quad adapters are available in plastic, with or without flanges, and in horizontal and

vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options

available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.:

blue, beige, aqua, green,etc.





Features

  1. Insertion loss <0.2dB
  2. Durability >1000 times
  3. Used to connect either PC or UPC polished SC Fiber cables
  4. Plastic body provides a light weight yet durable solution
  5. Stainless steel mounting clips allow for easy snap in installation
  6. Ceramic alignment sleeve supports Single mode applications
  7. 100% test in factory



Specification



Item

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean

every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

 40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

 -40ºC to +85ºC



≤0.2dB

Storage Temperature

 -40ºC to +85ºC



≤0.2dB





Order information

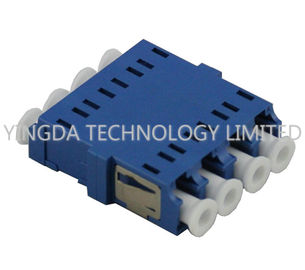

  1. LC Quad Singlemode Adapter w/o flange (blue)

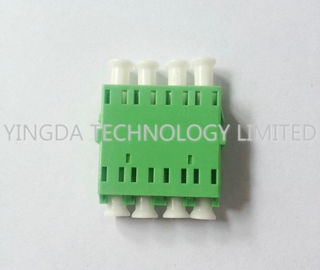

  2. LC/APC Quad Singlemode Adapter w/o flange (green)

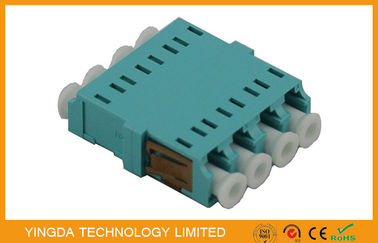

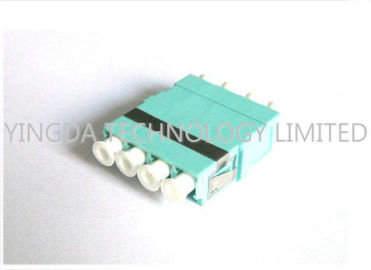

  3. LC Quad Multimode 10Gb OM3 Adapter w/o flange (aqua)
  4. LC Quad Multimode Adapter w/o flange (beige)



More product show



Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua



LC duplex short flange, no ear LC SM MM OM3 fiber optic adapter can be choosed too, check below:



Plastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G AquaPlastic Fiber Optic Connector Adapters LC Quad 4 Way No Ear OM3 10G Aqua
