PBT White Plastic MM DX Fiber Optic Adapter / Coupler , SC Duplex Adapter
Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.
WhatsApp:0086 18588475571
czat: 0086 18588475571
Skype'a: sales10@aixton.com
W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.
xFiber count | duplex | connector material | plastic |
---|---|---|---|
adapter color | beige | sleeve material | ceramic |
fiber type | multimode 50/125um,62.5/125um | polish mode | PC |
working temperature | -40 ~ +85 °C | wavelength | 850nm |
house material | PBT / ABS | connector | SC |
High Light | fiber optic coupler,bare fiber adapter |

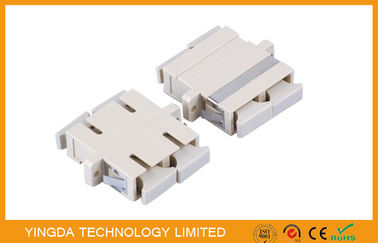

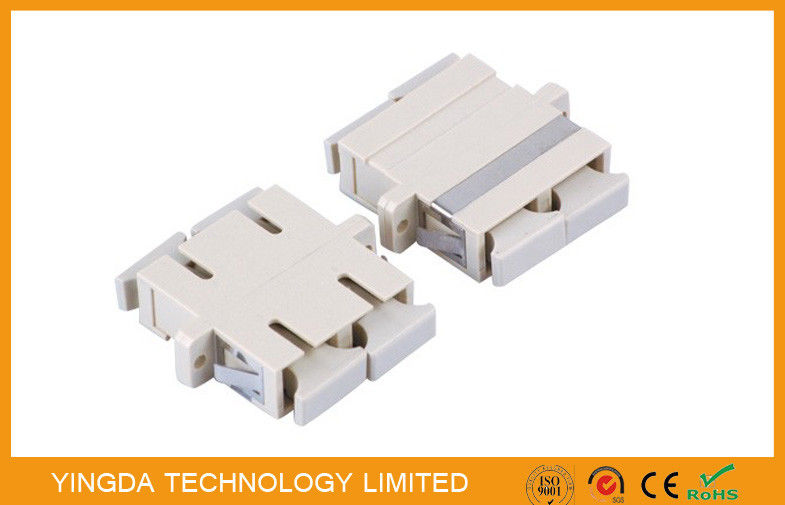

PBT Plastic SC MM DX Fiber Optic Adapter Optical Coupler, SC Duplex Adapter
Fiber connector adapters are also referred to as fiber optic couplers. They are used to provide a
cable to cable fiber connection.. Yingda connector adapters are used to connect the same type
fiber optic connectors, while hybrid adapters connect different kinds of fiber optic connectors.
We offers a complete line of adapters for fiber optic connections, including ST, SC, FC, LC, MTRJ
style fiber optic adapters for both multimode and single-mode fiber applications. We also offer fiber
adapter plates for ST-, SC-, MT-RJ- or LC-type connections.
SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,
high temperature resistant,not easy to oxidation.Transmission equipment generally use SC connectors.
This is a kind of developed by Japan's NTT optical fiber connector. The shell rectangular, adopted
by the pin and the structure of the coupling sleeve size and FC are exactly the same,. The end face
of the pin is used more PC or APC model grinding way; Fastening way is to use plug pin bolt type,
does not need to rotate. This kind of connector price is low, plug is easy to operate, small ripple in
loss, high compressive strength, high density installation.
Features
- Conforms to Telcordia GR-326-CORE standard
- Conforms to YD/T-1272.3 standard
- Good interchangeability,low insertion loss
- Easy to use,plug
- Application: FTTH,CATV,Telecommunications,etc
- 100% test in factory
- High quality blister box package
- Customer label with logo ok
- Insertion loss<0.2dB
Specification
Wavelength |
1200-1600nm |
Polish method |
UPC,PC,APC |
Insertion loss |
≤0.2dB |
Max.Insertion loss |
≤0.3dB |
Repeatability |
≤0.1dB |
Interchangeability |
≤0.2dB |
Sleeve material |
Cermic or metal |
Working/Storage temperature |
-40~+85℃ |
Matings time |
>1000 |
Order information
- Connector type: SC/UPC, SC/PC, SC/APC
- Connector color: beige, blue, green, aqua, purple
- Fiber type: SM, OM1, OM2, OM3, OM4
- Type: simplex, duplex
