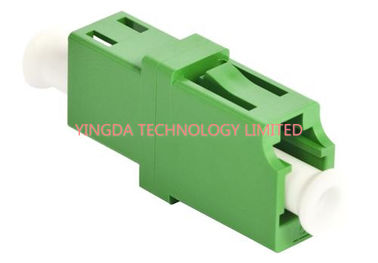

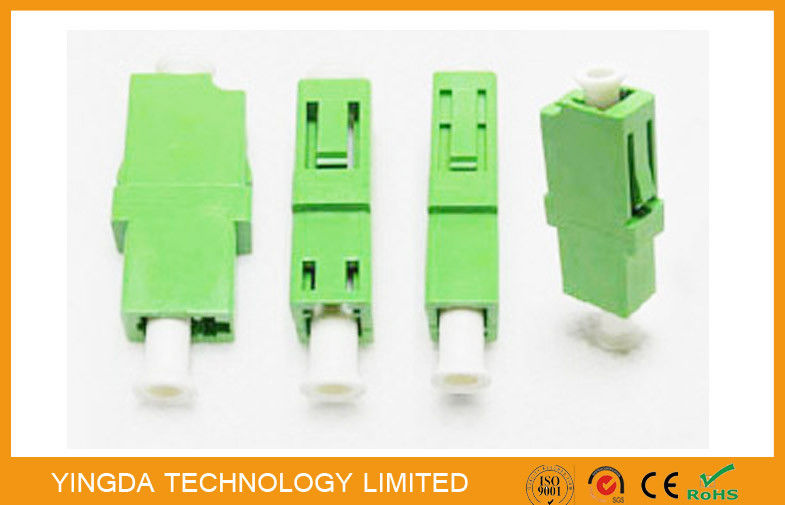

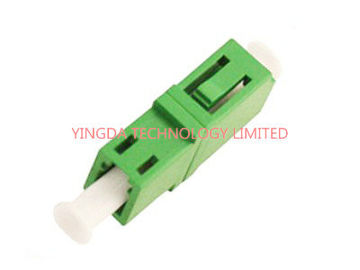

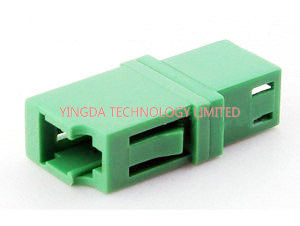

LC / APC Simplex Green Single Mode Fiber Optic Adapter 1310nm , LC Fiber Coupler

Podstawowe informacje
Place of Origin: China
Nazwa handlowa: YINGDA
Orzecznictwo: ISO,SGS
Model Number: AD-LCA-SX
Minimum Order Quantity: 500pcs
Cena: Negotiable
Packaging Details: 50pc / box
Delivery Time: 5 working days
Payment Terms: T/T or western Union
Supply Ability: 200km/ month
Szczegóły informacji
Fiber count: 1fiber siimplex connector material: plastic
adapter color: green sleeve material: ceramic
fiber type: SM 9/125um polish mode: APC
working temperature: -40 ~ +80 °C wavelength: 1310nm, 1550nm

opis produktu

LC / APC Simplex Green Single Mode Adapter Adaptor, Plastic LC Fiber Coupler





Institute of LC type connector is a famous BELL (BELL) research and development, using the

convenient operation modular jack (RJ) latch mechanism is made. The pin and the size of the

sleeve is adopted by the general SC, FC, half size of 1.25 MM. This can increase the density

of optical fiber connector in the optical fiber distribution frame. At present, in terms of single-

mode SFF, LC type of connector has occupied the dominant position, actual application in the

field of multimode is also growing rapidly.



This coupler provides a solution for extending a current run of fiber optic cabling. This coupler

is constructed from high grade plastic and has been designed and engineered for durability

and a long life.





Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability
  4. Low insertion loss
  5. Plug connection, easy and fast to install or uninstall
  6. 100% Test in factory
  7. 1 year guarantee



Application

  • CATV network
  •  FTTH
  • Telecommunication,etc



Specification



Item

SM





MM

PC

UPC

APC

Ferrule type

Convex spherical

big chamfer or step

Convex spherical

Ferrule ID (um)

125

127

Main body material

PBT or ABS

Connector type(mm)

0.9/2.0/3.0mm, simplex, duplex

Operating temperature (°C)

-40 ~+85

Storage temperature (°C)

-40 ~+85





Order information



Endface

Fiber mode

Fiber core

Sleeve

PC

Multi mode

simplex

Cermic

UPC

Single mode

duplex

Phosphor bronze

APC



quad







LC / APC Simplex Green Single Mode Fiber Optic Adapter 1310nm , LC Fiber CouplerLC / APC Simplex Green Single Mode Fiber Optic Adapter 1310nm , LC Fiber CouplerLC / APC Simplex Green Single Mode Fiber Optic Adapter 1310nm , LC Fiber CouplerLC / APC Simplex Green Single Mode Fiber Optic Adapter 1310nm , LC Fiber Coupler
