SM 9/125 um Fiber Optic Adapter LC / APC , Optical Fibre Adapter Green Quad 4 Way

Podstawowe informacje
Place of Origin: China
Nazwa handlowa: YINGDA
Orzecznictwo: ISO,SGS
Model Number: AD-LCA-Q4
Minimum Order Quantity: 500pcs
Cena: Negotiable
Packaging Details: 20 pc / box
Delivery Time: 5 working days
Payment Terms: T/T or western Union
Supply Ability: 200km/ month
Szczegóły informacji
Fiber count: 4 fiber / quad connector material: plastic
adapter color: green sleeve material: ceramic
fiber type: SM 9/125um polish mode: APC
working temperature: -40 ~ +80 °C wavelength: 1310nm, 1550nm

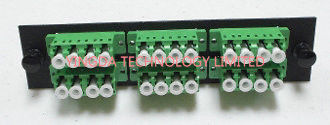

appliction: ODF adapter panel, LGX panel, rack mount panel

opis produktu

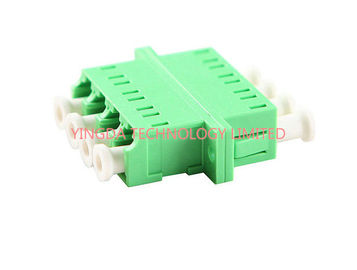

LC Quad Fiber Optic Adapter, LC / APC Optical Fibre Adapter Green Quad 4 Way





Institute of LC type connector is a famous BELL (BELL) research and development, using the

convenient operation modular jack (RJ) latch mechanism is made. The pin and the size of the

sleeve is adopted by the general SC, FC, half size of 1.25 MM. This can increase the density

of optical fiber connector in the optical fiber distribution frame. At present, in terms of single-

mode SFF, LC type of connector has occupied the dominant position, actual application in the

field of multimode is also growing rapidly.



Fiber Optic Adapter (coupler), is connector during optical fiber transmission, both ends can be

 inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000

to make them interchange,and widely used in optical optical distribution frame (ODF), optical

Fiber communication equipment, instruments, etc., superior performance, stable and reliable.

Some call fiber optic adapter as optical fiber connectors, in fast,its two different things.





Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability
  4. Low insertion loss
  5. Plug connection, easy and fast to install or uninstall
  6. 100% Test in factory
  7. 1 year guarantee



Application

  • CATV network
  •  FTTH
  • Telecommunication,etc



Specification



Item

SM





MM

PC

UPC

APC

Ferrule type

Convex spherical

big chamfer or step

Convex spherical

Ferrule ID (um)

125

127

Main body material

PBT or ABS

Connector type(mm)

0.9/2.0/3.0mm, simplex, duplex

Operating temperature (°C)

-40 ~+85

Storage temperature (°C)

-40 ~+85





Order information



  1. Connector type: SC, LC, MU, E2000, MT-RJ, FC, ST, DIN, D4, FDDI, SMA, etc
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex
  5. Polish: UPC PC APC SPC
