Single Mode Assembly Connector , FC Fiber optic connector Field Installation FTTH

Miejsce pochodzenia Chiny
Nazwa handlowa YINGDA
Orzecznictwo ISO SGS ROHS
Numer modelu YD-FiC-FC/UPC
Minimalne zamówienie 500PCS
Cena Negotiable
Szczegóły pakowania 10 pcs / blister box,1500 pcs / carton
Czas dostawy 5 working days after received your payment
Zasady płatności T/T or western Union
Możliwość Supply 500,000pcs per month

Skontaktuj się ze mną, aby otrzymać bezpłatne próbki i kupony.

WhatsApp:0086 18588475571

czat: 0086 18588475571

Skype'a: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
material Plastic house color Black
fiber type single mode insertion loss < 0.3 dB
return loss > 45 dB,(typical 50dB) pack blister box
High Light

quick assembly connector

,

FTTH connector

Zostaw wiadomość
opis produktu

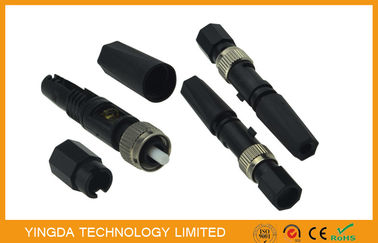

FC Quick Assembly Connector, FC Fiber Optic Fast Connector Field Installation FTTH





Advantage:

  1. Suitable for;  2mm* 3mm drop fiber cable
  2. Ceramic V-groove structure, good sealing performance, flame retardant
  3. Insertion loss: the average ≤ 0.3 dB, MAX ≤ 0.5dB
  4. Return loss: ≥45dB
  5. No need epoxy or polished, field-installable, factory embedded fiber
  6. Fiber Cable cut length: 15mm /10mm



Description



Field Assembly Connector (Fast Connector) is designed for simple and fast field termination of

single fibers, without the additional assembling tools. The heart of the Quick/ fast connector is

a pre-polished ferrule and a mechanical splice inside the connector body. They are widely used

in FTTx, Connecting up Renovation of Computer/controlling Room applications. The installation

process takes about two minutes, and the connector during the installation process does not

require any adhesive and curing process.



YINGDA provide field assembly connectors with unique design of the patented mechanical

splice body which incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.

It is not only for single-mode or multimode fiber,and can also choose to 900 microns, 3 mm and

the introduction of cable 8 font type.





Features

  • Easy assembly process
  • Available in LC, SC, and ST connector styles
  • Available in multimode or singlemode versions
  • Factory polishing eliminates loss concerns
  • Fiber can be reseatedNo expensive tools required
  • No epoxy required
  • Anaerobic adhesive-style, field-installable connectors
  • Most robust connection, ideal for indoor and outside plant applications
  • Repeatable times is no less than 50 times;
  • Long life span design, more than 30 years.
  • Precise mechanical dimensions
  • Low insertion loss, high return loss
  • Comply standard of IEC61754-4



Application

  1. Premise environments
  2. Connections at the desk for LAN environments
  3. Patch panels
  4. Direct equipment termination
  5. Fiber to the Subscriber / Home (FTTH) applications
  6. Repair/replacement requirements
  7. Equipment test leads



Specification



Type

Parameters

Insertion loss

≤ 0.3dB(1310nm & 1550nm)

Return loss

≤ -40dB

Bare fiber strength

>5N

Clad strength

>10N

Tension

>50N

Mechanical durability (500times)

IL ≤ 0.2dB & RL ≤ 5dB

Operating Temperature

5 ºC to +70 ºC



Order information



  1. Connector: SC/UPC, SC/APC
  2. Cable type: indoor cable 0.9mm,2.0mm,3.0mm or drop cable 2x3mm
  3. Connector color: black
  4. Dust cap color: white, green
  5. Package: 10pcs/set or 1pc/set, customized
  6. OEM ok
